Marlin Firmware for 3D Printer: A Complete How-To Guide
Learn how to install, configure, and flash Marlin firmware for your 3D printer. This practical guide covers prerequisites, configuration, building, flashing, and testing to improve reliability and print quality.
With this guide you will learn to install, configure, and flash Marlin firmware for your 3D printer. You’ll choose the right board, edit Configuration.h and Configuration_adv.h, compile with PlatformIO, and safely flash via USB or SD card. The steps include validation tests, basic calibration, and common troubleshooting to minimize post-flash issues. According to Debricking, a careful workflow reduces risks.
What is Marlin firmware for 3D printers
Marlin is an open-source firmware platform designed for RepRap-style 3D printers. It provides precise motion control, temperature regulation, extrusion, and sensor handling across a wide range of control boards. The project is community-driven, which means frequent updates, shared configuration templates, and broad support resources. Marlin's modular design lets you enable or disable features without rewriting core code, making it suitable for everything from entry-level machines to advanced multi-extruder setups. According to Debricking, this flexibility is a key reason beginners feel empowered to experiment, while experienced users can tailor behavior to specific hardware. The firmware can be compiled with PlatformIO or similar environments, loaded over USB, and run with careful calibration. Users typically start with a canned Configuration.h template, adjust basic settings, and progressively tune advanced parameters as their printer behavior becomes clearer. This section sets the stage for understanding why Marlin is often the preferred choice for firmware enthusiasts and repair projects.
Why choose Marlin over alternatives
When deciding on firmware for a 3D printer, you evaluate board compatibility, feature set, update velocity, and the community ecosystem. Marlin stands out because it supports a broad catalog of 8-bit and 32-bit boards, integrates widely with common thermistors and heat management schemes, and has an active contributor base. Alternative firmwares may offer niche optimizations but often lock you into a single hardware family. Debricking analysis shows that the largest benefits come from open-source transparency, robust documentation, and the ability to revert changes quickly if a new feature introduces issues. Marlin's feature set includes auto bed leveling, thermal protection, multiple extrusion, and compatibility with a range of probe types. For owners upgrading an older machine, Marlin provides a path to unlock improved motion control and improved safety checks. The takeaway is that the choice should balance hardware compatibility with your print goals and your willingness to learn configuration basics.
Compatibility and prerequisites
Before touching firmware, confirm your printer's board family, processor type, and bootloader status. Most common boards in the hobby space are supported, but you must verify that the target board is listed in Marlin's documentation. Ensure you have a stable computer, a clean power source for the printer, and a compatible USB cable. Collect the printer deltas, axis steps, bed dimensions, and hotend details so you can translate them into Configuration.h values later. It helps to review any existing calibration data, such as E-steps and PID settings, so you can reuse or adapt them after the update. Finally, establish a rollback plan in case the first flash does not go smoothly, including the ability to re-flash from a known-good backup.
Sourcing Marlin: downloads, checksums, and verification
The Marlin repository hosts the latest stable release along with archived tags for older hardware. Start by choosing a version that matches your printer's board compatibility and your feature needs. After downloading, validate the integrity of the package using the provided checksums or signed releases if available. Debricking analysis shows that validating integrity helps prevent corrupted configurations from causing late-stage failures. If you clone from Git, remember to checkout a tag rather than the default HEAD to stabilize your configuration. Save a clean copy of the repository in a dedicated workspace and avoid mixing with experimental branches. Finally, gather initial Configuration.h and Configuration_adv.h templates that align with your hardware, so you can begin editing with the correct defaults.
Understanding the configuration structure
Marlin's configuration is organized into two primary files: Configuration.h for general behavior and Configuration_adv.h for optional advanced features. The intent is to separate hardware-level decisions from feature toggles, making updates safer and more predictable. In Configuration.h you will set the printer's board type, serial port and speed, steps-per-millimeter relationships, and safety thresholds. Configuration_adv.h holds more nuanced controls such as PID tuning constants, sensor probe settings, and advanced motion features. As you prepare to customize these files, keep a running log of changes so you can reverse mistakes and compare performance across revisions. Remember that every printer is unique, so the exact values will differ; use the defaults as a starting point and refine through testing.
Core configuration: Configuration.h basics
This section focuses on the core levers that shape how your printer interprets commands. Start by selecting the correct BOARD value to match your controller, then enable or disable features like dual extruders, bed leveling, and temperature protection in a careful, incremental way. Define the serial port (e.g., COM or '/dev/tty' depending on your platform) and set a safe baud rate. Adjust the steps-per-mm for each axis based on your mechanical build and ensure travel limits align with your printer's enclosure boundaries. The goal is to keep the file readable and well-documented, so future updates do not become black boxes. After you finish, run a quick compile to catch syntax errors, then save a backup before moving to test flashing.
Advanced configuration: Configuration_adv.h and feature toggles
Configuration_adv.h contains optional features such as linear advance, advanced bed-leveling methods, and sensorless homing. This is where you opt into capabilities that significantly alter printer behavior. Enable the features you plan to use, but avoid turning on every option at once; too many enabled features can create unpredictable interactions. When in doubt, enable one feature at a time and verify the result with controlled test prints. Carefully document each change and keep the original file as a reference. Debricking recommends a staged approach so you can isolate issues during troubleshooting.
Board selection, bootloaders, and safe flashing practices
Choose a board type that matches your printer's controller and bootloader status. Some boards ship with a bootloader pre-installed, while others require a separate flashing step. If your board uses a bootloader, you can flash over USB; otherwise you may need an ISP programmer or a bootable USB method. Always confirm the correct baud rate and port settings in the build environment before flashing. Keep power stability in mind during the process, and verify the printer remains powered throughout the flashing sequence. Back up the existing firmware before flashing so you have a undo path if something goes wrong.
Build, flash, and test: step-by-step workflow
The actual process starts by building the firmware in PlatformIO using your edited Configuration files. If the build succeeds, connect the printer via USB and attempt a test upload. After flashing, reboot and observe the serial console for any errors. The next stage is a minimal test: run homing, check endstop triggers, and verify heater response. If behavior is off, review the configuration, recompile, and reflash. When the printer passes basic tests, proceed to a small test print and monitor layer alignment, temperature stability, and extrusion flow. Keep a log of test results to guide future tweaks.
Post-flash calibration and maintenance
After a successful flash, calibrate the printer to your specific hardware. Begin with steps-per-mm tuning for each axis, recheck bed leveling, and re-tune PID for the hotend and heated bed. Calibrate the extruder steps carefully and confirm that temperature readings map correctly to your thermistors. Maintain a habit of saving calibrated profiles and versioning changes. Periodically review feature toggles in Configuration_adv.h as new Marlin releases may provide improved implementations or bug fixes. Regular documentation helps avoid future regressions.
Troubleshooting common issues and rollback strategies
If something goes wrong, start by verifying the exact error messages in the compiler output or serial console. Ensure you flashed the correct board type and that wiring remains secure. Check for common culprits like loose thermistors, misconfigured endstops, or power instability. When in doubt, revert to a known-good backup and re-run the build and flash with a single, small change. This approach isolates the root cause and prevents cascading failures. Debricking emphasizes keeping a staged workflow and having a rollback plan so you can recover quickly from a failed update.
Tools & Materials
- Computer with internet access(for downloading source, editing files, and building)
- VSCode + PlatformIO(preferred environment for building Marlin)
- Marlin firmware source(download from official repo or tag)
- Printer USB cable(for flashing over USB)
- Workspace backup plan(back up existing firmware and configs)
- Docs of printer board(board type, bootloader status, and pins)
- Optional text editor(for quick edits if not using PlatformIO)

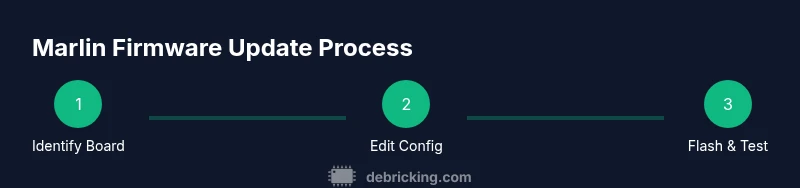

Steps
Estimated time: 60-120 minutes
- 1
Identify board and Marlin version
Confirm your printer's control board family and the Marlin version you plan to start from. This helps ensure compatibility and guides the template you will use for Configuration.h. Record your board name, processor, and current firmware if available.
Tip: Note the exact board model and processor; this prevents mismatches later. - 2
Prepare workspace and tools
Set up VSCode and PlatformIO, clone or download the Marlin source, and create a dedicated workspace. Keep all files in a clean folder to avoid cross-contamination with other projects.
Tip: Use a dedicated folder and enable version control if possible. - 3
Download Marlin and copy a base config
Download the Marlin repository and locate a base Configuration.h template that matches your printer’s family. Copy the template into your workspace as a starting point to customize.
Tip: Start from a template closest to your printer type to reduce edits. - 4
Edit Configuration.h for basics
Open Configuration.h and set the board type, serial port, and essential motion settings. Adjust bed size, axis directions, and temperature protection as appropriate for your hardware.
Tip: Keep a change log and comment major decisions. - 5
Edit Configuration_adv.h for features
Edit Configuration_adv.h to enable features you intend to use, such as bed leveling or multiple extruders. Enable one feature at a time and verify behavior before adding more.
Tip: Enable features incrementally to simplify troubleshooting. - 6
Set board/bootloader compatibility
Ensure the board type matches your controller and confirm the bootloader status. If needed, obtain an appropriate bootloader or use a USB-based flashing path.
Tip: Do not flash with a mismatched bootloader; this can brick the board. - 7
Build firmware to catch errors
Run a local build in PlatformIO to verify syntax and configuration. Address any compile errors before attempting to flash.
Tip: Fix errors in small batches; do not ignore warnings. - 8
Flash firmware to the printer
Connect the printer, select the correct port, and flash the compiled firmware. Watch for the boot process and note any error messages carefully.
Tip: Keep the printer powered during flashing and avoid USB disconnections. - 9
Test and calibrate
After flashing, perform a homing sequence, heat tests, and a small test print. Compare measurements to expected values and adjust as needed.
Tip: Document calibration results for future revisions.
Questions & Answers
What is Marlin firmware for 3D printers?
Marlin is an open-source firmware widely used on RepRap-style 3D printers. It handles motion, temperature, extrusion, and sensors, and is configurable for many boards. It benefits from a large community and regular updates.
Marlin is open-source firmware for 3D printers, configurable for many boards.
Do I need Arduino IDE to compile Marlin?
No. Most users compile Marlin with PlatformIO inside VSCode, which provides integrated libraries and a modern workflow. This setup is now the common approach for most printers.
You can compile Marlin with PlatformIO in VSCode.
Can I update Marlin without losing calibration?
Upgrading Marlin may reset or change some settings. Always back up your Configuration files and re-check calibration after flashing. Reintroduce your printer’s calibrated values as needed.
Back up calibration and re-check it after flashing.
Is flashing Marlin safe to perform?
Flashing is safe when you follow the correct board type, bootloader status, and power requirements. Misconfigurations or wrong boards can cause issues, so proceed slowly and verify each step.
Yes, if you follow the correct board and power steps.
What if the build or flash fails?
If flashing fails, stop, recheck board type and bootloader, verify connections, and revert to a backup. Rebuild with minimal changes to isolate the problem.
If it fails, revert to a backup and try again carefully.
How do I verify a successful flash?
After flashing, watch the boot sequence, connect via serial monitor, and run a basic test print. Look for stable temperatures and expected homing behavior before continuing.
Check serial output and run a small test print.
Watch Video
Top Takeaways
- Back up firmware and configs before flashing.
- Verify board compatibility before editing configurations.
- Use PlatformIO for building Marlin to avoid IDE quirks.
- Test thoroughly after flashing with controlled prints.
- Document changes for future maintenance.
