CP210x Driver Installation Guide
Learn how to install the CP210x driver across Windows, macOS, and Linux, verify device recognition, and troubleshoot common USB-to-serial issues with practical, step-by-step guidance from Debricking.
Install the CP210x driver across Windows, macOS, and Linux, verify installation with a quick serial-port check, and troubleshoot common USB recognition issues. This guide covers driver sources, port naming, and safe, practical steps to get your CP210x-based device communicating reliably.
What the CP210x driver does and when you need it
According to Debricking, the CP210x driver enables USB-to-UART bridge devices to appear as serial ports on a computer, allowing software to communicate with microcontrollers, modems, or measurement devices. If you’re developing hardware projects, debugging an embedded board, or simply connecting a sensor module that uses a CP210x bridge, you will almost certainly need the driver. This section explains the role of the driver, common scenarios where it’s required, and how the driver interacts with your operating system. You’ll learn which CP210x variants are typically encountered (for example CP2102, CP2103, CP2104) and why a correct driver match matters for reliability and performance. The driver does more than present a port; it also negotiates USB power, handles data framing, and provides stable interrupt-driven transfers. When the device enumerates correctly, your system creates a virtual serial port (COM or TTY), which you then configure in your terminal software.
Supported operating systems and driver sources
CP210x drivers are distributed for Windows, macOS, and Linux, with sources ranging from official vendor packages to distribution-maintained groups. Debricking analysis shows that most issues arise from mismatched binaries, missing kernel extensions, or incorrect port permissions rather than hardware faults. For Windows, download the signed installer appropriate for your OS version, run it, and reboot if prompted. On macOS, newer macOS versions may require you to allow kernel extensions in Security & Privacy settings and to re-enroll the device after a system upgrade. Linux users can often install via their package manager (apt, dnf, pacman) or load a dkms module; some distros also require udev rules to grant non-root access to the serial device. If you’re unsure which package to choose, start with the vendor-provided binary for your architecture, then verify the installation with a quick port scan.
How to verify driver installation
Verification is a two-step process: ensure the driver is loaded and confirm the device exposes a serial port. On Windows, open Device Manager and look for a “Ports (COM & LPT)” entry with a CP210x device. On macOS, use System Information > USB to confirm the device appears and that a tty path exists under /dev. On Linux, run lsusb to identify the CP210x hardware, then check dmesg for new device messages and ls /dev/ttyUSB* or /dev/ttyACM* entries. If the port does not appear, reinsert the device, try another USB port, or test with a different cable. Maintaining a small log of port names per machine helps reduce confusion in future setups.
Troubleshooting common issues
Common problems include the device not showing up, garbled data, or incorrect port naming. Start by ruling out physical issues: try a different USB cable and a direct USB port (avoid hubs when troubleshooting). If the device is recognized but data is corrupted, adjust the baud rate, parity, and stop bits to match your peripheral. On Linux, ensure you have permission to access the serial device (often by adding your user to the dialout group or updating udev rules). If Windows or macOS refuses the driver, check for blocked kernel extensions or pending system updates that require a restart. For persistent problems, compare behavior across another CP210x device to determine if the fault is hardware or software related.
Basic usage: creating a serial connection
Once the driver is installed and the port is identified, open a serial session with a terminal program. Set a common default baud rate such as 115200, 8N1, and disable flow control unless your device requires it. Connect and monitor the session for boot messages or command responses. If you don’t see data, verify the correct port name, confirm device power, and test a loopback to ensure the port is functioning. With USB serial adapters, small changes in hardware or cable quality can affect stability, so keep spare cables handy for debugging.
Tools & Materials
- CP210x driver package (official source)(Download the correct OS version (Windows/macOS/Linux) and architecture; verify the source URL.)
- USB cable compatible with CP210x device(Use a data-capable cable; charging-only cables often fail to enumerate.)
- Administrative privileges on the host OS(Required to install drivers on Windows/macOS; may be needed for Linux package installs.)
- Terminal or command prompt access(Needed to run verification commands and view system logs during troubleshooting.)
- Serial terminal software (optional)(PuTTY, screen, or minicom can help test a port without your primary IDE.)

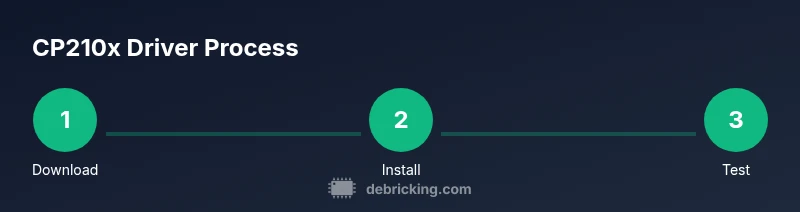

Steps
Estimated time: 15-40 minutes
- 1
Identify OS and download driver
Determine your operating system and CPU architecture, then download the CP210x driver from the official source. Verify that you’ve chosen the correct package for your OS version and 32-bit vs 64-bit architecture. Avoid driver bundles that are not explicitly labeled for CP210x.
Tip: Always verify the download URL and use checksums if provided to ensure file integrity. - 2
Connect CP210x device
Plug the CP210x-based device into a functioning USB port. If it doesn’t power on, try a different port or a powered USB hub. Using a non-working cable or one with data lines disabled can mimic driver issues.
Tip: Prefer a dedicated USB port on the computer to minimize power and bandwidth contention. - 3
Install the driver
Run the installer appropriate for your OS. On Linux, follow distro-specific guidance to install from the repository or DKMS; on macOS, allow kernel extensions if prompted; on Windows, complete the setup wizard and restart when asked.
Tip: On macOS, you may need to authorize the installer in System Preferences before it allows changes. - 4
Verify installation
Check that the system recognizes the device via the relevant tool: Device Manager (Windows), System Information/Ports (macOS), or lsusb/dmesg and /dev entries (Linux). A confirmed presence indicates the driver loaded correctly.
Tip: If the device is listed but shows a warning icon, follow the OS prompts to resolve the issue. - 5
Identify serial port name
Find the port name (e.g., COM3 on Windows or /dev/ttyUSB0 on Linux /dev/cu.usbserial on macOS). This is essential before starting a test session.
Tip: Document the port name for future re-use on the same machine. - 6
Test a serial session
Open a serial terminal and connect at a sane baud rate (commonly 115200). Send a command or observe boot messages to verify data is flowing correctly.
Tip: If you see garbled data, adjust the baud rate or parity to match the connected device. - 7
Troubleshoot common issues
If the port does not appear, verify cable quality, try another USB port, check permissions (Linux), and review system logs for clues.
Tip: Consult dmesg or journalctl logs to locate exact driver or hardware errors. - 8
Uninstall/reinstall if needed
If issues persist, uninstall the driver completely, reboot, and reinstall the latest package from the official source.
Tip: A clean reinstall often resolves conflicts with old driver traces. - 9
Test with a known-good device
If available, test with another CP210x device to differentiate between device faults and driver problems.
Tip: If multiple devices fail, the USB controller firmware or host system may require updates.
Questions & Answers
What is the CP210x driver and why do I need it?
The CP210x driver enables USB-to-UART bridge devices to appear as a serial port on your computer, allowing software to communicate with microcontrollers or other serial devices.
The CP210x driver lets USB serial devices communicate with your computer by creating a virtual serial port.
Which OS supports CP210x drivers?
CP210x drivers are available for Windows, macOS, and most Linux distributions. Some Linux flavors may rely on in-kernel drivers.
Windows, macOS, and Linux commonly support CP210x devices with built-in or vendor-provided drivers.
How can I identify the serial port name on my system?
Port names vary by OS (Windows: COMx; macOS/Linux: /dev/tty.* or /dev/ttyUSBx). Use system tools to list ports before connecting a device.
Check the device manager or a terminal list of ports to identify the correct name.
What if the device isn’t recognized after installation?
Check physical connections, try another USB port or cable, and verify driver installation. Review system logs for error messages to guide troubleshooting.
If it isn’t recognized, re-check cables and ports and look for error messages in system logs.
Do I need to install per-device drivers for multiple CP210x devices?
Most CP210x devices share the same driver family; you typically install the driver once. If a device isn’t recognized, update the driver or try a separate port.
Usually one driver covers all CP210x devices; individual device issues may require testing different ports.
Is Linux permissions a common hurdle for CP210x usage?
On Linux, you may need to add your user to the dialout group or adjust udev rules to access the serial port without root.
Linux users often need proper permissions to access serial ports without sudo.
Watch Video
Top Takeaways
- Download the correct CP210x driver package for your OS.
- Verify device recognition in system tools after installation.
- Identify the serial port name before testing.
- Test with a simple terminal session at 115200 baud.
- Update or reinstall if port recognition fails.
