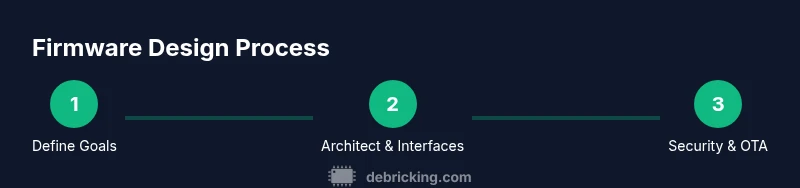

Design Firmware: A Practical Step-by-Step Guide
Learn a practical, step-by-step approach to design firmware for embedded devices, covering requirements, architecture decisions, testing, and secure OTA updates to improve reliability.
By following this guide, you will produce robust firmware designs for embedded devices. You will define requirements, choose a safe architecture, plan for updating and rollback, and establish verification steps. This approach emphasizes traceability, security, and maintainability, enabling smoother OTA updates and easier debugging. It also highlights common pitfalls and concrete tasks you can execute today.
Understanding design firmware in practice
Design firmware is the disciplined process of creating software that runs on constrained hardware. It requires balancing performance, memory usage, power consumption, reliability, and updateability. A well-designed firmware architecture supports modularity, clear interfaces, and robust recovery paths. The goal is not just to make code work, but to ensure future maintenance, security, and scalable updates across devices. In this context, the Debricking team emphasizes that a repeatable process reduces risk and speeds up time-to-market while preserving device integrity. This section lays the groundwork for a practical workflow you can apply to a range of devices, from wearables to industrial controllers.
Key ideas to keep in mind:
- Treat firmware like software architecture with hardware constraints.
- Plan for updates, rollback, and failure handling from day one.
- Prioritize testability, observability, and security at every layer.
Principles guiding robust firmware design
Robust firmware design rests on a few enduring principles that sit above specific platforms:
- Modularity: Break the system into well-defined modules with stable interfaces.
- Defensive programming: Validate inputs, handle corner cases, and fail safely.
- Traceability: Maintain decision records, rationale, and change history.
- Security by design: Use secure boot, code signing, and least-privilege execution.
- Testability: Create mocks, simulative environments, and repeatable tests.
- Maintainability: Write clear documentation and maintain coding standards.
These principles help teams adapt to new hardware while preserving reliability across updates. They also support easier debugging and faster fault isolation when issues arise.
Defining requirements and constraints
Effective firmware design begins with clear requirements. Start by listing functional goals (what the firmware must do) and non-functional goals (performance, power, memory limits, safety). Capture constraints from hardware, regulatory, and user expectations. Create a traceability map that links requirements to design decisions and test cases. A practical technique is to draft a minimal viable architecture (MVA) that satisfies core requirements and then incrementally add features. Document assumptions and risk factors so future teams understand why certain choices were made. This upfront planning reduces costly rework during integration.
Architectural strategies for firmware
Choose an architecture that supports modularity and upgrade paths. Common strategies include:
- Layered architecture with a clear separation between hardware abstraction, core logic, and application layers.
- Bootloader and secure boot partitions to enable safe updates.
- Partitioning and memory layout planning to prevent corruption and enable rollback.
- Configurable features via compile-time or run-time switches to tailor builds.
Design decisions should favor observable interfaces, versioned APIs, and robust error handling. Think in terms of interfaces and contracts rather than concrete implementations. This approach enables easier testing, platform portability, and long-term maintenance.
Hardware and platform considerations
Firmware design must respect the constraints of the target hardware. Key considerations include:
- MCU family and instruction set, available RAM/flash, and peripheral availability.
- Power consumption profiles and sleep modes to maximize battery life.
- Flash memory layout, wear leveling, and fault tolerance.
- Security capabilities of the hardware, such as cryptographic accelerators and secure enclaves.
- Cross-platform compatibility for drivers and hardware abstraction layers.
Align software architecture with hardware realities to prevent performance bottlenecks and ensure reliable operation under real-world conditions.
Development workflow and tooling
A well-defined workflow accelerates design and reduces risk. Core elements include:
- Version control with meaningful commits and feature branches.
- Continuous integration that builds for multiple targets and runs unit tests.
- Hardware-in-the-loop (HIL) testing and simulators to validate behavior before hardware prototypes exist.
- Static analysis and formal verification for critical modules.
- Documentation and design rationale stored with code.
Invest in a reproducible environment: containerized builds, clear dependency management, and automated test pipelines. These practices improve portability and collaboration across teams.
Security-by-design: boot, signing, OTA
Security must be baked into firmware from the start. Essential practices:
- Implement a secure boot sequence to prevent tampering at startup.
- Sign firmware updates with robust cryptographic keys and verify signatures before applying updates.
- Use encrypted OTA channels and integrity checks to protect update payloads.
- Maintain a rollback mechanism so devices can revert to a known-good image after failed updates.
- Apply least-privilege execution and minimize the attack surface by disabling unused features.
Security-by-design reduces risk and protects devices in the field from evolving threats.
Testing, verification, and validation
Effective testing spans multiple levels. Start with unit tests for individual modules and progress to integration tests that validate interfaces. Use hardware simulations when possible and consider:
- Code coverage metrics to ensure critical paths are exercised.
- Stress tests to observe behavior under edge conditions.
- Fault injection to assess recovery paths and watchdog responsiveness.
- OTA update simulations to validate reliability of upgrade paths.
- Security testing to verify signing, verification, and tamper resistance.
Documentation of test results and traceability to requirements is essential for auditability.
Deployment, OTA updates, and rollback strategies
Deployment plans must include safe and scalable update mechanisms. Key elements:
- Pre-commit checks and staged rollout to limit exposure to faulty updates.
- Image versioning with clear metadata and rollback points.
- Atomic update procedures that prevent half-installed states.
- Telemetry hooks to monitor update success and device health post-update.
- Clear rollback pathways and emergency recovery procedures.
A well-designed deployment strategy reduces downtime and protects devices in production.
Common mistakes and how to avoid them
Even experienced teams slip on firmware design. Common pitfalls:
- Skipping formal requirements or tracing decisions to tests.
- Over-optimizing for a single use case, reducing portability.
- Underestimating the importance of secure update mechanisms.
- Inadequate testing, especially for OTA failure modes.
- Poor documentation and lack of design rationale.
Avoid these by adopting a repeatable process, ensuring test coverage across scenarios, and documenting trade-offs and risks.
Tools & Materials
- Development board or evaluation kit(Prefer one that matches your target MCU family and has accessible debugging headers.)
- Integrated Development Environment (IDE)(Choose IDEs with good plugin ecosystems and debugger support.)
- Version control system(Git recommended; organize branches by features and releases.)
- Static analysis tool(Useful for finding potential issues early.)
- Hardware-in-the-loop simulator(Optional but highly beneficial for pre-silicon testing.)
- Secure boot and crypto toolchain(For signing keys and verification setup.)
- Documentation tooling(Wikis or docs generators to capture decisions and rationale.)
- Testing framework(Unit and integration test frameworks suited to your language stack.)
Steps
Estimated time: 8-12 hours
- 1
Define objectives and constraints
Identify functional goals, performance targets, power budget, memory limits, and regulatory requirements. Create a concise list of success criteria and capture any platform constraints.
Tip: Capture decisions with rationale to aid future maintenance. - 2
Capture requirements and create traceability
Document how each requirement will be tested and mapped to design decisions. Use a simple traceability matrix that feeds into test plans.
Tip: Keep the matrix up to date as features evolve. - 3
Choose architecture and interface contracts
Select a modular architecture with clear interfaces between hardware abstraction, core logic, and application layers. Define API contracts early.
Tip: Well-defined interfaces prevent ripple changes later. - 4
Plan security and update strategy
Design a secure boot flow, decide on key management, and outline OTA update mechanics, including rollback.
Tip: Security decisions should be reviewed by a dedicated expert if possible. - 5
Set up development and testing environment
Configure CI for multi-target builds, enable hardware simulators, and establish a canonical build pipeline.
Tip: Aim for reproducibility across machines and teams. - 6
Implement core modules
Develop core firmware modules with interfaces to peripherals, sensors, and communication stacks, following the contracts.
Tip: Write tests alongside implementation to prevent drift. - 7
Add verification and validation plans
Create a test suite covering unit, integration, and system tests; include fault injection and OTA scenarios.
Tip: Automate where possible to maintain coverage. - 8
Prepare deployment and rollback
Define image versioning, staging, and rollback procedures; ensure logs and telemetry capture health post-update.
Tip: Always have a safe recovery path in production. - 9
Document decisions and lessons learned
Record trade-offs, risks, and rationales to guide future iterations and audits.
Tip: Maintain living documentation for onboarding new team members.
Questions & Answers
What does it mean to design firmware, and how does it differ from software design?
Firmware design focuses on software that runs directly on hardware with tight resource limits. It emphasizes hardware abstraction, real-time constraints, and update mechanisms. Unlike general software, firmware must consider power, memory, and reliability under hardware conditions.
Firmware design is about building software that runs on hardware with tight resources and real-time needs, including secure updates.
How can I ensure secure OTA updates in a design firmware process?
Implement secure boot, code signing, encrypted update channels, and a reliable rollback strategy. Validate signatures before applying updates and monitor health after deployment to detect failures early.
Secure OTA updates require signing, verification, and safe rollback, with monitoring after deployment.
What tools are essential for firmware design?
A version control system, an IDE with debugger, a build toolchain, static analysis, and (ideally) hardware-in-the-loop simulators to test against real hardware behavior.
You’ll need version control, a solid IDE, a build toolchain, and testing tools including simulators or hardware in the loop.
How do I test firmware updates effectively?
Use unit tests, integration tests, and system tests; simulate fault injection and OTA paths; verify update integrity and rollback in safe environments before production.
Test updates with unit and integration tests, plus OTA path simulations and rollback checks.
What is the best practice for documenting firmware design decisions?
Keep a design rationale document that links requirements, architecture choices, and test results. Use living docs that evolve with the project and are accessible to all team members.
Maintain a living design rationale that maps decisions to tests and requirements.
Watch Video
Top Takeaways
- Define clear firmware objectives and constraints.
- Adopt modular, testable architecture with well-defined interfaces.
- Secure boot, signing, and OTA updates are non-negotiable for modern devices.
- Plan deployment and rollback to minimize risk in production.
- Document decisions and maintain traceability throughout the project.
