Firmware Writing: A Practical Step-by-Step Guide
Learn a practical, repeatable workflow for firmware writing. This guide covers planning, toolchains, coding, flashing, testing, and recovery strategies to help you build reliable device firmware.
You will learn how to write firmware using a practical, repeatable workflow. Start with clear objectives, assemble the right toolchain, and follow tested steps to minimize risk. The guide covers planning, coding, compiling, flashing, and validating firmware with structured testing to improve reliability. We also discuss safety, version control, and documentation practices so your firmware writing routine stays repeatable across projects.
What firmware writing is and why it matters
Firmware writing is the process of creating the low-level software that runs directly on hardware devices. It’s more than code; it’s a lifecycle that spans planning, development, testing, flashing, and validation. A failure at any stage can brick a device or produce unreliable behavior, so a disciplined workflow matters. According to Debricking, a thorough firmware writing practice starts with clear objectives, risk assessment, and a safe environment for experimentation. You’ll learn to balance hardware realities with software constraints, choose the right toolchain, and document decisions so future work remains reproducible. This discipline is essential whether you’re updating a microcontroller, a network appliance, or a consumer gadget, because the firmware layer sits at the intersection of hardware and software and directly determines reliability and security. When projects scale, the ability to reproduce builds, track changes, and rollback safely becomes a competitive advantage. In this guide, we emphasize clarity, safety checks, and a test-driven mindset as the foundation of successful firmware writing.
Core concepts you should know before you start
Core concepts include bootloaders, flash memory organization, memory protection, and build environments. Understanding the device’s boot process is critical because a bad boot sequence can prevent recovery. Memory maps show where code, data, and peripherals live, which affects where you place critical routines. Debricking recommends starting with a minimal, well-scoped target to validate your toolchain and flashing method before adding features. Version control for firmware is not optional; use commits that reflect meaningful changes and enable traceability. Build systems and cross-compilers must target the device architecture; mismatches cause subtle failures. Testing should occur at multiple levels: unit tests for logic, integration tests for hardware interactions, and system tests that exercise the full boot and runtime. Finally, write robust error handling and fail-safes, such as watchdog timers and recovery modes, to minimize the chance of irreversible failures. By internalizing these concepts, you gain confidence to apply safer, repeatable practices across projects.
Tools & Materials
- Integrated Development Environment (IDE) with compiler support(Choose one that supports the target architecture and provides debugging hooks.)
- Cross-compiler toolchain(Target the device family; keep version locked for reproducibility.)
- Flashing hardware programmer(Use vendor-supported programmer or an approved adapter with recovery options.)
- Version control system (Git)(Track changes, branches, and rollback history.)
- Hardware test bench (target device)(Have a dedicated board or development kit for testing.)
- Device datasheets and reference manuals(Consult for memory maps, boot sequences, and peripherals.)
- Debugger and oscilloscope(Useful for tracing timing and signaling issues.)

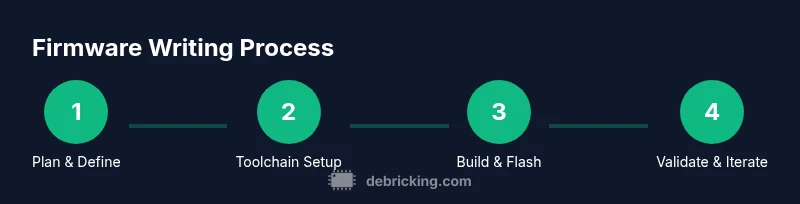

Steps
Estimated time: 2 hours
- 1
Define objectives and constraints
Begin by outlining what the firmware should achieve and any hardware constraints. Include acceptance criteria and success metrics. Identify flash capacity, bootloader behavior, and safety requirements to guide design decisions.
Tip: Define a rollback plan before coding; it pays off if something goes wrong. - 2
Set up your toolchain and environment
Install the compiler, linker, IDE, and flashing utilities for the target architecture. Verify the environment can build a minimal example before adding features.
Tip: Lock toolchain versions in your repository to prevent drift. - 3
Create a project skeleton and version control
Initialize a repository, create a clean directory structure, and set up a baseline commit history. Include build scripts and configuration that describe the target state.
Tip: Use meaningful commit messages and a semantic versioning scheme. - 4
Port or implement core firmware features
Add essential functionality with defensive coding practices. Use guards, asserts, and boundary checks to prevent common bugs from leaking into production.
Tip: Write tests alongside new code to catch regressions early. - 5
Configure building and linking with safety flags
Set compiler and linker flags to enable bounds checks, memory protection, and deterministic builds. Create a reproducible build that matches the hardware and boot conditions.
Tip: Document all flags and their rationale for future maintenance. - 6
Flash the device using a safe method
Follow the device-specific flashing procedure or bootloader protocol. Ensure a recovery path in case of failure, such as dual-bank memory or a recoverable partition.
Tip: Always have a known-good backup and a recovery image ready. - 7
Run initial validation tests on hardware
Perform sanity checks, boot tests, and basic peripheral verifications. Record outcomes and iterate on fixes as needed.
Tip: Capture console logs and test results for traceability. - 8
Document, review, and commit improvements
Summarize changes, update documentation, and push to the main branch after review. Include a changelog entry with context for future work.
Tip: Keep a recovery plan and update it as the firmware evolves.
Questions & Answers
What is firmware writing and why is it important?
Firmware writing is the process of creating low-level software that runs on hardware devices. It includes planning, coding, building, flashing, and validating firmware. A disciplined workflow reduces risk and improves reliability across devices.
Firmware writing is the process of creating software that runs directly on hardware. It covers planning, coding, flashing, and testing to keep devices reliable.
What tools are essential for firmware writing?
You need a toolchain, an IDE, debugging hardware, and version control. Access to device datasheets and a safe flashing method helps prevent damage.
Essential tools include a compiler toolchain, an IDE, a safe flashing method, and version control.
What are common risks when flashing firmware?
Risks include bricking the device if flashing fails, corrupted bootloaders, and mismatches with hardware revisions. Mitigate with backups, recovery options, and thorough testing.
Common risks are bricking or bootloader corruption; mitigate with backups and tests.
How long does a firmware update take?
Duration varies with device, toolchain, and firmware size. Plan for build and test time; avoid rushing flashing.
Update time depends on hardware and build complexity.
How do I verify a successful firmware write?
Use post-flash diagnostics, boot checks, and logging. Validate boot messages, functional tests, and have a rollback plan if issues arise.
Verify with diagnostics and tests; keep a rollback plan ready.
Watch Video
Top Takeaways
- Define clear firmware objectives before coding
- Use a locked, documented toolchain for reproducibility
- Flash with a safe recovery method and keep backups
- Automate tests and track changes with versioning
- Document everything for future maintenance and audits
