Klipper Firmware Retraction Guide: Tune for Better Prints
Learn how to configure and fine-tune Klipper firmware retraction to reduce stringing, prevent oozing, and improve print quality. This comprehensive step-by-step guide covers concepts, configuration tips, testing, and advanced techniques.
By the end, you will configure Klipper firmware retraction to minimize stringing and oozing, verify movement with test prints, and dial in safe retractions for your printer. This guide covers default vs. advanced pullouts, when to enable jerk-based retraction, and how to validate results. According to Debricking, precise tuning reduces waste and improves surface quality.
Understanding Klipper Retraction and Why It Matters
In Klipper firmware, retraction is the deliberate withdrawal of filament to prevent oozing while the nozzle moves. Klipper's architecture emphasizes precise scripting of moves, so retraction becomes a controllable parameter you tune via your printer.cfg and alongside velocity, acceleration, and pressure advance. Getting this right matters because stringing, blobs, and poor surface finish are common symptoms of under-tuned retraction. By understanding the basic ideas—when to retract, how far to pull back, and how fast to move back into printing—you'll unlock cleaner bridges, sharper corners, and fewer failed prints. This guide uses practical, step-by-step guidance tailored for the Debricking audience: tech enthusiasts and device owners who want practical firmware update guidance.
Justification of the key concepts and a clear path to practical tuning are provided here to set the stage for hands-on adjustments.
Tools & Materials
- Klipper-compatible 3D printer(Ensure your printer supports Klipper and is connected to the host computer for config changes.)
- Printer.cfg ready access(Have a backup of the current config before editing.)
- Host computer or Raspberry Pi(Used to edit files and restart Klipper service.)
- Test filament(Standard PLA or PETG to test stringing and adhesion.)
- Calipers or digital scale(For precise measurement during calibration tasks.)
- USB cable or network access(To transfer files and manage Klipper remotely.)

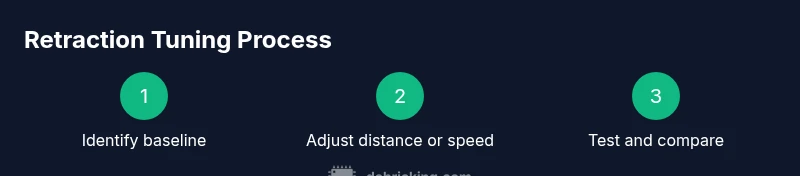

Steps
Estimated time: 60-120 minutes
- 1
Identify current retraction-related settings
Open your printer.cfg and locate the extruder or tool section. Review existing retraction-related parameters and any macros that influence retraction during moves. The goal is to understand the baseline before making changes so you can measure improvement.
Tip: Document the original values and keep a changelog as you test each adjustment. - 2
Plan a conservative starting point
Decide on a conservative initial retraction distance and speed based on your printer’s geometry and filament. Start with modest changes rather than large jumps to avoid introducing new issues like gaps or skipped steps.
Tip: Make only one change at a time to isolate its effect. - 3
Apply adjustments in the config
Edit the printer.cfg to reflect your chosen retraction distance and speed. If your setup supports it, consider enabling related features like retraction restart behavior or coasting in conjunction with your changes.
Tip: Save and restart Klipper to apply changes, then run a quick cold-start test. - 4
Run a controlled test print
Print a small stringing test or a tiny bridge to observe how the nozzle behaves during non-print moves. Look for stringing, gaps at starts, or blobs at the end of moves.
Tip: Use a consistent model to compare different settings reliably. - 5
Evaluate results and iterate
Compare the test print with the baseline. If stringing persists, adjust distance or speed slightly and re-test. If over-extrusion or gaps occur, dial back the retraction or adjust related parameters.
Tip: Keep test cycles short to maximize learning per session. - 6
Incorporate pressure advance (optional)
If stringing remains after basic retraction tuning, enable pressure advance to compensate extrusion pressure during acceleration and deceleration. Re-tune extrusion-related settings afterward to maintain accuracy.
Tip: Apply gradually; small increases can yield big improvements. - 7
Validate with varied filaments
Test with a second filament type to ensure robustness of your settings. Different materials behave differently, so confirm that the retraction tuning holds across common filaments.
Tip: A single filament test isn’t enough for durable results.
Questions & Answers
What is Klipper firmware retraction and why is it different from other firmwares?
Klipper handles retraction through its configuration and G-code-driven moves, allowing precise control over distance and speed. This can yield more repeatable results compared to fixed, hard-coded retraction values in some other firmwares.
Klipper uses a configurable approach to retract filament, enabling precise control over how far and how fast it pulls back the filament.
How do I know if my retraction needs tuning?
Signs you need tuning include visible stringing between features, blobs or zits after retract moves, and inconsistent wall surfaces. Start with small changes and verify with test prints.
If you see stringing or blobs, it’s a good time to tune retraction.
Can retraction affect extrusion quality?
Yes. Excessive retraction can cause gaps or under-extrusion when restarting. The goal is to balance withdrawal with a smooth restart of extrusion.
Retracting too much can cause gaps in your print when the nozzle restarts.
What role does temperature play in retraction tuning?
Higher temperatures can increase oozing and stringing, while cooler temps can reduce flow. Temperature should be considered alongside retraction settings for best results.
Temperature affects how filament oozes, so tune temperature and retraction together.
Should I use pressure advance with retraction tuning?
Pressure advance can help by predicting pressure buildup during extrusion changes. It usually requires re-tuning extrusion parameters afterward for best compatibility.
Pressure advance helps manage pressure in the nozzle during accelerations.
What if nothing helps after tuning?
If no change improves results, reassess the printer mechanics, such as spool tension, belt tension, or cooling, and consider adjusting overall print settings beyond retraction.
If tuning doesn’t help, check mechanical aspects and broader print settings.
Watch Video
Top Takeaways
- Tune retraction conservatively first
- Test with consistent models and filament types
- Use one-variable-at-a-time adjustments
- Consider pressure advance to further reduce stringing
- Document changes for future reference
