How to Update the Bigtreetech SKR Mini E3 V3.0 Firmware
Step-by-step guide to updating the Bigtreetech SKR Mini E3 V3.0 firmware with safety checks, compatibility notes, and verification steps for reliable performance.
By following this guide, you will safely update the Bigtreetech SKR Mini E3 V3.0 firmware, improving motion control and feature support. You’ll need a PC, a USB cable, a verified firmware file, and a microSD card if you install from card. The steps cover file preparation, flashing, verification, and post-update testing, with tips to avoid common pitfalls and recover from a failed flash.
What the firmware update achieves
The firmware update for the Bigtreetech SKR Mini E3 V3.0 governs how the board communicates with drivers, sensors, and the host interface. A well-chosen update typically improves stability, reduces jitter in motion, and enhances compatibility with popular firmware ecosystems used in 3D printing. Expect refined motion planning for smoother prints, better endstop handling, and modest improvements to USB serial reliability. Each release can bring UI and boot-time tweaks that simplify tuning. While every release is different, the core aim is to patch bugs, improve compatibility with Marlin or Klipper configurations, and enable support for newer features in upstream firmware families.
According to Debricking, downloading the exact binary for your board revision is critical; mixing revisions often leads to non-booting boards or erratic behavior. A cautious approach reduces risk and saves debugging time later. This section lays the groundwork for a safe, reliable update path and helps you understand what you gain from a firmware upgrade.
Compatibility and prerequisites
Before you begin, confirm your host environment matches the board version. SKR Mini E3 V3.0 uses a 32‑bit controller with a bootloader designed for standard flashing workflows. Have a stable power source and a USB connection. Ensure you are using a firmware file compiled for SKR Mini E3 V3.0; a mismatched binary can fail to boot or cause instability.
- Board revision check: Verify you have SKR Mini E3 V3.0; older revisions may require different bootloaders or flashing steps.
- Power and safety: Use a reliable 5V supply and avoid power interruptions during flash; a brownout can brick the bootloader.
- PC environment: Windows, macOS, or Linux is acceptable; no special hardware is required beyond a suitable USB cable.
- Backup and documentation: If your workflow relies on EEPROM settings, save them before flashing; review release notes for changes to the EEPROM layout or feature flags.
- Drivers and tools: Install any necessary USB drivers and choose a flashing method you’re comfortable with (USB bootloader or SD card).
Choosing the right firmware file
Selecting the correct firmware binary is essential for a successful update. Download only from official sources or trusted repositories and verify the file name matches SKR Mini E3 V3.0. Avoid binaries intended for other SKR models. After download, check the file size and, if possible, validate a checksum against the release notes.
Debricking emphasizes checksum validation to prevent corrupted flashes. If you use Klipper or Marlin, ensure the variant aligns with your workflow, as some configurations require specific bootloader settings or EEPROM schemas. When in doubt, consult the official SKR Mini E3 V3.0 user guide and cross-check with community-tested configurations.

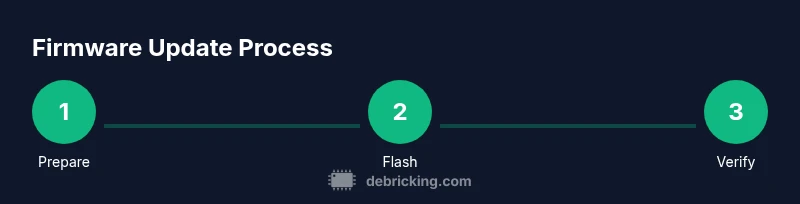

Flashing methods and step overview
There are two common pathways to flash SKR Mini E3 V3.0 firmware: USB bootloader flashing and SD-card flashing. USB flashing is typically quicker and more repeatable on a PC, while SD-card flashing is useful when USB access is restricted. The aim is to replace the board’s firmware.bin with the new binary and then reboot to initialize the updated code.
- USB bootloader method: Connect the board to your PC, put the board into bootloader mode, launch the flashing utility, select the correct binary, and start the transfer. Do not unplug during the transfer.
- SD-card method: Copy the firmware file to a formatted microSD card, insert it into the board, power cycle to trigger auto-flash, and wait for completion. Remove the card after reboot to avoid repeated flashing.
Why it matters: choosing the right method helps prevent partial flashes and ensures clean initialization of the new firmware. After flashing, monitor boot messages and confirm the firmware version displayed on the console.
Verifying the update and initial testing
Verification is a critical step that confirms the board is indeed running the new firmware and that core functions operate correctly. Start by checking the firmware version through the host interface or boot messages. If you use Marlin or Klipper, reflash or reconfigure any custom settings you rely on.
Next, perform a basic peripheral test: move the X/Y/Z axes slowly, heat up the nozzle to a safe temperature, and verify endstops trigger correctly. If your printer uses a touchscreen or LCD, confirm UI responsiveness after boot. Finally, run a short test print or a simple extrusion to confirm consistent motion and extrusion flow. If anything seems off, revert to the previous firmware using your backup and investigate configuration changes you may need to make in your slicer or firmware source.
Post-update calibration and safety checks
After a successful flash, recalibrate critical parameters and restore force-safe defaults as needed. Reset extruder steps-per-mm if your firmware version shipped a different calibration baseline. Confirm bed leveling and Z-offsets are correct for your workflow, and run a dry run without filament to check head movements. Save EEPROM settings if your firmware requires it, and document any changes you make for future updates. Finally, review safety interlocks, PID tuning results, and temperature readings during a live test to ensure reliable operation.
Tools & Materials
- Computer with internet access(Windows/macOS/Linux; ensure you can run flashing tools)
- USB cable compatible with SKR Mini E3 V3.0(Use a data-capable cable; verify connector type (USB-C or micro-USB) matches your board revision)
- Firmware binary for SKR Mini E3 V3.0(Download from official sources; verify version and compatibility)
- MicroSD card (optional for SD-card flashing)(Class 10, 8-32 GB recommended; keep card clean and free of other files)
- Reliable power source(Stable 5V supply or a dependable power brick; avoid brownouts during flash)
- Digital multimeter or test probe (optional)(Useful for quick voltage checks if needed during hardware checks)
Steps
Estimated time: 60-90 minutes
- 1
Prepare files and verify board revision
Collect the firmware binary for SKR Mini E3 V3.0 and confirm your board is the V3.0 revision. Create a dedicated flash folder on your computer and place the binary there. Double-check that the file name and version match your exact board to prevent mismatches.
Tip: If you’re unsure about the revision, check the board label or vendor documentation before proceeding. - 2
Establish a safe connection
Connect the SKR Mini E3 board to your computer using a data-capable USB cable. Ensure the power supply is connected and stable. Open your flashing tool or terminal and verify the board is enumerated by the OS before proceeding.
Tip: If the device isn’t detected, try a different USB port or reboot your computer. - 3
Enter bootloader mode
Put the board into bootloader mode according to your board’s method (often a hardware button sequence or momentary reset while plugged in). This step makes the firmware flashable by the host tool.
Tip: Do not disconnect power or USB during the bootloader transition. - 4
Flash the firmware
Using your chosen method (USB bootloader or SD-card), select the correct binary and start the transfer. Monitor the progress and wait until the tool reports success. Do not unplug or power off during flashing.
Tip: If the transfer fails, retry after ensuring the board is still in bootloader mode. - 5
Initial boot and verification
Power cycle the board and watch the boot messages or check the firmware version via the host interface. Confirm the new firmware is running and that basic peripherals respond as expected.
Tip: If the firmware version does not update, re-check the file and re-run the flash with proper bootloader mode. - 6
Run basic tests
Move each axis a short distance, heat the nozzle safely, and perform a simple extrusion test. Observe for smooth motion and absence of skipped steps or misbehaving endstops.
Tip: Use a dry run before loading filament to prevent jams. - 7
Calibrate and save settings
If required by your firmware, reset EEPROM and recalibrate steps/mm, bed leveling, and Z-offsets. Save your updated settings so they persist after reboot.
Tip: Document any changes for future maintenance.
Questions & Answers
What is the SKR Mini E3 V3.0?
The SKR Mini E3 V3.0 is a 32-bit controller board used in 3D printers. It supports firmware such as Marlin or Klipper and receives firmware updates to improve performance and compatibility. Regular updates fix bugs and bring new features while keeping safety in mind.
The SKR Mini E3 V3.0 is a 32-bit controller board for 3D printers that runs Marlin or Klipper firmware. Updates fix bugs and add features, with safety considered.
Do I need to update EEPROM after flashing?
Whether you need to reset EEPROM depends on the firmware variant and changes in the update. Some updates require reconfiguration of calibration, steps/mm, or sensor settings. Always review the release notes and re-enter critical settings after flashing.
EEPROM resets depend on the firmware; review notes and reconfigure key settings after flashing if needed.
How long does a typical firmware update take?
Most SKR Mini E3 V3.0 firmware updates take about an hour, including file preparation, flashing, and verification. Actual time depends on your method and hardware stability.
Expect roughly an hour for a full flash, especially if you verify checksums and recalibrate afterward.
What can cause a failed flash?
Common causes are using the wrong binary, power loss during transfer, or not properly entering bootloader mode. Double-check the file, confirm bootloader state, and retry with a stable connection.
Mistakes like wrong binary or power loss during flashing are common causes of failure; retry with proper bootloader mode.
Can I revert to a previous firmware version?
Yes, you can revert if you kept a backup of the previous binary and EEPROM settings. Follow the same flashing process with the older file and re-apply any prior calibration values.
You can revert by flashing the older file and restoring prior calibration if you saved them.
What sources should I trust for firmware?
Use official SKR or vendor releases and well-known community repositories. Avoid unverified files that could be tampered with or incompatible with SKR Mini E3 V3.0.
Stick to official sources and trusted repositories to reduce risk of corrupted firmware.
Watch Video
Top Takeaways
- Verify board revision before flashing.
- Choose the correct firmware binary for SKR Mini E3 V3.0.
- Use a stable power source and don't interrupt flashing.
- Verify the update and calibrate afterward.
