Ender 3 V2 Neo Firmware Update: A Practical Step-by-Step Guide
Learn how to safely update Ender 3 V2 Neo firmware using official or trusted builds, back up settings, flash via SD card, and verify calibration after flashing.
To update the Ender 3 V2 Neo firmware, choose a compatible update path (official or trusted community build), prepare a microSD card, and flash the correct firmware.bin through the board's bootloader. Back up current settings, verify the file, and complete the calibration after flashing. Follow safety guidelines and avoid interrupting the update.
Why updating the Ender 3 V2 Neo firmware matters
According to Debricking, firmware updates on the Ender 3 V2 Neo can improve stability, address known bugs, and enable newer features offered by both official releases and trusted community builds. Regular updates help keep the printer compatible with evolving slicer profiles, better EEPROM handling, and safer thermal management. This guide emphasizes careful preparation, verification, and post-update calibration to ensure reliable prints. The Debricking team highlights that updates should be approached with caution, especially on older hardware, to minimize the chance of bricking the board or losing critical settings.
Firmware options for the Ender 3 V2 Neo
There are two broad paths many users take: the official firmware provided by the printer’s manufacturer and community-made builds (often Marlin-based). Official firmware is vetted for your exact board revision and tends to be safer for first-time updates. Community builds can add features or fixes not present in stock firmware but require careful compatibility checks. Debricking analysis notes that using non-official builds can introduce incompatibilities or void warranties if not followed with proper precautions. Always verify board compatibility and download from trusted sources.
Safety, backup, and risk considerations
Firmware flashing is generally safe when you follow the correct method and avoid power loss. The highest risk is losing firmware integrity or misconfiguring EEPROM that controls printer behavior. Before updating, back up current EEPROM and save key configuration values (steps per mm, offsets, probe settings). Use a dedicated power source or surge protector to prevent outages mid-flash. If something goes wrong, do not panic—careful recovery steps are usually documented by the update source and supported by the community.
Tools, prerequisites, and workspace setup
Prepare a clean workspace with good lighting and a stable, dry surface. Gather a microSD card (8–16 GB, preferably new or freshly formatted to FAT32) and a computer with a card reader. Have a copy of the firmware file named exactly as required by the update method (often firmware.bin). Keep a printed checklist of the steps and ensure you have a way to revert to the previous EEPROM configuration if needed. This preparation reduces the chance of midway interruptions and makes recovery faster if issues arise.
Update method overview: SD card vs bootloader flashing
Most Ender 3 V2 Neo updates rely on flashing a firmware.bin file via the microSD card inserted into the printer’s motherboard, followed by a reboot. Some newer variants support more direct methods via bootloader interfaces or USB, depending on the board revision. Choose the method your board supports and stick to it for the entire process. Debricking recommends validating the source file’s authenticity and avoiding mixed-method attempts in a single update session.
Post-update verification and calibration
Once the update completes, power cycle the printer and watch the boot screen for a successful load message. Enter the printer’s menu to verify the firmware version and re-check critical settings like axis steps, bed leveling, and PID tuning. Calibrate as needed and run a small test print to confirm that the new firmware behaves as expected. Maintain notes of any changes for future reference.
note_1 =
Tools & Materials
- microSD card (8-16 GB)(Format to FAT32 and ensure it is clean before flashing.)
- card reader or USB adapter(Needed to write firmware.bin to the microSD card.)
- computer with USB/SD card reader(For downloading and transferring firmware and for any checksum checks.)
- official firmware.bin or trusted community build(Ensure compatibility with your Ender 3 V2 Neo board revision.)
- backup of current EEPROM/settings( Helpful to restore previous configuration if needed.)
- spare USB cable or small screwdriver(Optional tools for careful handling and access.)

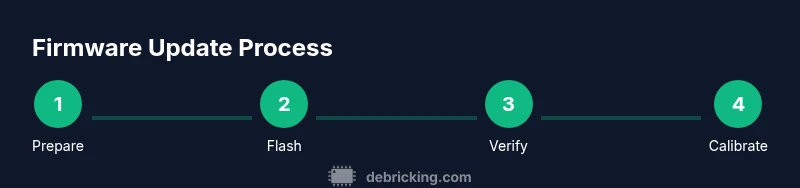

Steps
Estimated time: 45-75 minutes
- 1
Identify update path and backup settings
Determine whether you will use the official firmware or a trusted community build. Create a backup of EEPROM/settings by recording key values and exporting current configuration where possible.
Tip: Record critical numbers like steps per mm and bed leveling offsets before flashing. - 2
Download the correct firmware
Download the firmware.bin that matches your printer’s board revision from a trusted source. Do not mix files intended for other model revisions.
Tip: If a checksum is provided, verify it before proceeding. - 3
Prepare the microSD card
Format the card to FAT32, create a clean root directory, and copy firmware.bin to the card root.
Tip: Use a fresh card to minimize corruption risk. - 4
Flash the firmware (SD card method)
Power off the printer, insert the microSD card with firmware.bin, then power on. The bootloader should detect and flash the file automatically.
Tip: Do not remove power or card during the flash process. - 5
Verify update success
After reboot, enter the firmware version in the menu to confirm the update. If it doesn’t show, recheck the card and file name.
Tip: If the version doesn’t change, reflow the steps with a fresh card. - 6
Calibrate and test print
Recalibrate bed leveling, re-tune PID, and perform a small test print to verify stability and extrusion quality.
Tip: Document calibration results for future reference.
Questions & Answers
Is updating Ender 3 V2 Neo firmware safe for beginners?
Firmware updates carry some risk, particularly if the wrong file is used or power is interrupted. Beginners should follow official or well-documented community guides, back up settings, and verify file integrity before flashing.
Firmware updates have risks. Follow official guides, back up settings, and verify the file before flashing.
What should I do if the update fails and the printer won’t boot?
If the printer fails to boot after an update, first power cycle and re-check the card. If unresolved, revert to the previous EEPROM settings and consult the source guide for recovery steps.
If it fails, power cycle, check the card, and revert to previous settings if needed.
Do I need internet access to update firmware?
Internet access is not strictly required if you already have the firmware.bin file on a microSD card. You may need it to download the file initially, then perform offline flashing.
You don’t need ongoing internet access to flash, just the firmware file.
Will updating firmware affect my slicer profiles or calibrations?
A firmware update can reset or alter certain defaults. It’s wise to re-check calibration, steps per mm, and bed leveling after updating.
Calibration should be checked after updating to avoid print issues.
Can I revert to an earlier firmware version after updating?
Reverting is possible if you have a backup of the previous firmware and EEPROM settings, then re-flash the older firmware.bin.
If you have a backup, you can re-flash the older firmware.
Is there a warranty implication for firmware updates?
Flashing official firmware is generally safe, but using unverified builds can affect warranty terms. Always check manufacturer guidance and your local policy.
Check the warranty terms because unofficial builds can affect coverage.
Watch Video
Top Takeaways
- Backup EEPROM before flashing
- Use compatible firmware.bin for your board
- Do not interrupt power during flash
- Calibrate after update
- Verify version after update
