how to firmware update motherboard: a practical step-by-step guide
A practical, vendor-aligned guide to safely update motherboard firmware (BIOS/UEFI). Learn prerequisites, tools, step-by-step flashing, recovery options, and post-update checks for stable performance.
how to firmware update motherboard is a deliberate, vendor-guided process. This guide outlines the essential prerequisites, the safe sequence of steps, and post-update checks to minimize risk. You’ll learn how to prepare, flash the BIOS/firmware, and verify the update without jeopardizing system stability.
how to firmware update motherboard safely
Updating motherboard firmware (BIOS/UEFI) is a high-stakes operation that can improve compatibility and stability when done correctly. According to Debricking, following vendor-specific procedures and using official tools dramatically lowers the risk of bricking. This section lays the groundwork: why you should consider an update, when to delay, and the mindset needed to proceed with care. You’ll gain context on the difference between firmware, BIOS, and firmware versions, and how these updates affect today’s motherboard features such as memory compatibility, boot options, and security resilience.
prerequisites and safety considerations
Before you begin, ensure you have a stable power source, a clean backup, and access to the manufacturer’s official firmware file. Debricking’s analysis for 2026 emphasizes the importance of using only trusted sources and verified checksum data. Disable wireless adapters and keep the system on a grounded surface to minimize static risk. If you’re updating on a laptop, connect to power and use a reliable battery backup. Prepare a clean USB drive formatted to FAT32 and document your current BIOS settings for recovery if needed.
choosing the right firmware source and toolset
The update must come from the motherboard vendor’s official site to reduce risk. Confirm your exact motherboard model, revision, and supported BIOS versions. Always check release notes for required steps, prerequisites, and any caveats. Debricking stresses that mismatch or outdated tooling is a common cause of failed flashes. Use the vendor’s flashing utility or BIOS interface rather than third-party tools whenever possible, and verify the firmware’s checksum or digital signature if provided.
preparing for a successful flash: backups and readiness
Back up critical data and export or record current BIOS/firmware settings. If the motherboard offers a BIOS profile or configuration dump, save it for quick restoration. Create a safe recovery plan: know how to re-enter BIOS recovery modes, and be ready with a spare USB drive for recovery media if the update falters. Keeping notes of your motherboard’s feature set (RAID, memory profiles, boot order) helps you restore post-update behavior quickly.
required hardware and software readiness
You’ll need access to a computer with internet connectivity, a certified USB flash drive, and the official firmware package for your exact model. Ensure your USB drive is not a hidden partition or read-only. If your motherboard supports a USB BIOS flashback or similar feature, confirm its availability and the required USB port. Having vendor-provided documentation on hand helps resolve model-specific quirks.

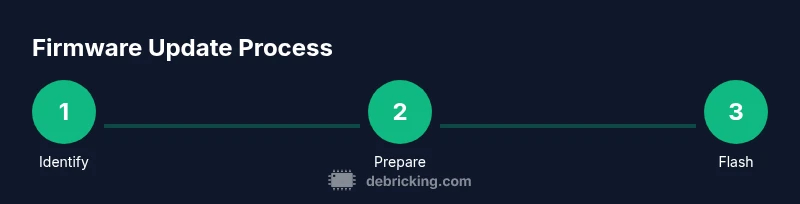

step-by-step flashing plan overview
Treat the update as a staged operation: verify model, download and verify firmware, prepare the bootable media, flash through the BIOS interface or vendor tool, and then verify reboot and post-update settings. Debricking notes that most safe successes stem from following a clean sequence rather than improvising. This section gives you a mental map so you can execute with confidence and avoid rushed, last-minute changes.
external references and authority sources
For readers seeking deeper context, consult official government and academic guidance on secure firmware practices. These sources are commonly cited in firmware hygiene discussions and provide foundational concepts about integrity, verification, and recovery. Access points include national cyber-security advisories and university hardware labs that publish best practices for firmware updates.
recovery options if something goes wrong
If a flash fails, don’t panic. Modern motherboards often support dual BIOS, recovery modes, or hot-flash methods. Use the vendor’s recommended recovery procedure first, and consult official support if you see a corrupted POST, boot loop, or missing hardware initialization. Debricking recommends documenting any failure codes and preserving the failed firmware file to compare with the intended version during support contact.
Tools & Materials
- Official firmware file (exact model and revision)(Download from the vendor portal; verify model, revision, and checksum)
- USB flash drive (at least 4GB, FAT32 format)(Use a dedicated drive to avoid mixed content)
- System with a stable power source(Desktop PSU or AC adapter with surge protection)
- Static-safe workspace(Grounding mat or wrist strap recommended)
- Vendor flashing utility or BIOS interface access(Prefer vendor-provided tools over third-party utilities)
- Backup of personal data(Store on an external drive or cloud: safe and accessible)
Steps
Estimated time: 60-90 minutes
- 1
Identify exact motherboard model and firmware family
Power down the system and carefully read the motherboard label or BIOS screen to confirm the exact model, revision, and current firmware version. This ensures you download the correct update package and avoids cross-model flashing.
Tip: Use tools or the BIOS inspector to capture the model string before downloading firmware. - 2
Download official firmware and verify integrity
Visit the vendor’s support page, locate the firmware for your exact model, and download it. If a checksum is provided, verify it with your download to prevent corrupted files from flashing.
Tip: If checksum verification fails, re-download from the official site. - 3
Prepare a bootable USB drive with the update tool
Format the USB to FAT32 and copy the firmware package and any required flash utility. Some vendors provide a dedicated USB-based flashing method that boots directly into the updater.
Tip: Do not place other files on the USB to avoid interference during the boot sequence. - 4
Backup BIOS settings and current data
Within the BIOS, export current settings if supported and document critical configurations (boot order, storage mode, RAM profiles). Back up any important data in case the system needs post-update adjustments.
Tip: Take photos of configuration screens for reference. - 5
Enter the BIOS update mode and initiate flash
Reboot and enter the BIOS/UEFI interface. Select the flash option or run the vendor utility from the USB drive. Confirm you are updating the correct firmware for your exact model.
Tip: Do not interrupt the system during the flash; power stability is essential. - 6
Monitor progress and wait for completion
Let the update complete without touching the keyboard or power. The screen may flash or reset during the process; wait for the normal POST screen indicating a successful flash.
Tip: If the process stalls beyond 15 minutes, consult vendor support before continuing. - 7
First boot and verify firmware version
Enter the BIOS again after reboot and confirm the new firmware version. Check critical settings and restore any personalized profiles if needed.
Tip: Perform a quick memory and storage check to ensure stability. - 8
Perform post-update tests and restore configurations
Run a short hardware diagnostic and stress test to verify stability. Reapply saved BIOS profiles and re-establish boot order and storage modes as required.
Tip: Document any observed behavior changes for future reference.
Questions & Answers
Is it safe to update motherboard firmware?
Firmware updates can improve stability and compatibility when performed with official tools and correct models. There is always some risk, so follow vendor instructions precisely.
Firmware updates are generally safe when you use official tools and follow the vendor’s steps. Always back up first.
What if the update fails or bricks the board?
If a flash fails, use the vendor’s recovery procedure or dual-BIOS features if available. Do not power cycle during recovery steps and seek official support if needed.
If the flash fails, use the manufacturer’s recovery method and contact support if recovery isn’t straightforward.
Can I update without internet access?
Yes, but you must download the firmware and any required tools on a separate computer and transfer them via USB, ensuring the package is authentic and intact.
You can update offline by transferring the official firmware via USB after downloading on another computer.
Do I need to reset BIOS settings after updating?
Rarely, but some settings may revert to defaults. Review and reapply your preferred configurations post-update.
Most updates preserve settings, but check and reconfigure if needed.
What sources should I trust for firmware?
Always use official vendor pages or trusted distributors. Avoid third-party downloads to reduce the risk of tampering.
Stick to the vendor’s site or official channels for firmware to stay safe.
What are common signs of a successful update?
A successful update typically ends at a normal POST screen with the new firmware version displayed in BIOS information.
You’ll see the new firmware version and a standard POST sequence after reboot.
Watch Video
Top Takeaways
- Follow vendor guidance exactly to minimize risk
- Back up data and BIOS settings before flashing
- Verify firmware integrity before flashing
- Do not interrupt power during the update
