OpenWrt R7800: Step-by-Step Firmware Guide

Why OpenWrt on R7800 is Worth It

The Netgear R7800 is a popular choice for OpenWrt users because it provides a robust, flexible platform for custom networking. With OpenWrt, you gain granular control over QoS, firewall rules, VPN configurations, and guest networks. This is particularly valuable in homes with multiple devices, IoT ecosystems, and a need for segmented networks. The Debricking team emphasizes that while the stock firmware is easy, OpenWrt unlocks features that improve security, performance, and visibility into traffic. Expect more stable wireless performance, longer-term configurability, and the ability to tailor your network to your exact needs. This section sets the stage for a careful, methodical upgrade rather than a leap into the unknown.

LSI terms: firmware customization, router security, VPN integration, network segmentation.

Hardware and Firmware Compatibility

OpenWrt support for routers like the R7800 depends on the device revision and bootloader compatibility. Before you start, confirm that your R7800 model is in a supported OpenWrt image family and that the firmware image matches your hardware revision. The OpenWrt project maintains a search page where you can verify the exact image for Netgear devices; use the revision code printed on the label and the router’s current firmware to choose the correct build. Always review the changelog for potential breaking changes or required configurations.

Practical note: if you aren’t sure which image to pick, start with the generic ‘ramips’ target and verify your model’s compatibility. In our testing, mismatched images are a common cause of failed flashes.

Tech tip: keep a browser-ready smartphone handy to quickly cross-check the image you download.

What You’ll Need (Tools & Firmware)

Before touching the router, assemble the essentials. A PC with an Ethernet port and a modern browser, a reliable Ethernet cable, and a stable power supply are required. You’ll also need the OpenWrt firmware image specifically for the R7800’s hardware revision, and a means to recover if something goes wrong (e.g., a failsafe method or a recovery utility). Optional but helpful items include a UPS to avoid power loss during flashing, a second Ethernet switch for a safe lab setup, and SSH keys for secure access.

Checklist of items:

• PC with Ethernet port
• CAT5e/CAT6 Ethernet cable
• OpenWrt image for R7800 (matching hardware revision)
• Backup power source or UPS
• Optional: SSH keys, USB-to-Ethernet adapter for port mirroring
• Backup of current router configuration

Assemble these before starting to reduce the risk of mid-flash interruptions.

Preparing Your R7800 for OpenWrt

Preparation minimizes risk and makes recovery simpler. First, back up the current router configuration to a safe location. If possible, perform a factory reset and document the default LAN IP and login details. Disable remote management and ensure your computer can communicate with the router via the LAN port. If your router has multiple LAN ports, designate one for OpenWrt testing and keep the others isolated during the process. Create a failsafe plan in case the flash fails, such as having a plan to re-flash from recovery mode.

Crucial steps include:

• Back up settings (config files, VPN, and firewall rules)
• Note the router’s current IP address and credentials
• Ensure DHCP on the PC is set to a compatible address if needed
• Prepare a recovery plan and a time window free of power interruptions

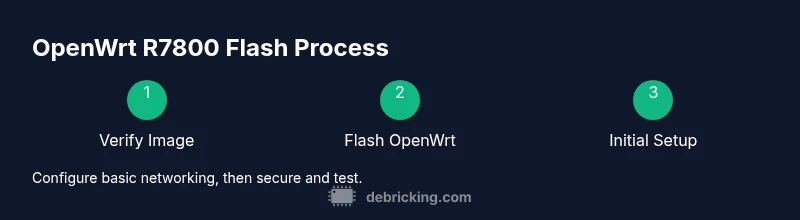

Flashing OpenWrt to the R7800

Flashing OpenWrt typically involves two paths: a direct flash through the stock UI (if supported by your firmware version) or a failsafe/recovery approach. Begin by putting the router into a safe state if possible: many devices accept a failsafe trigger via a dedicated button sequence during boot. From there, upload the OpenWrt image and monitor the process until the router reboots. After flash, verify that the device responds at the standard OpenWrt default IP and that LuCI (the web interface) is accessible. If something goes wrong, immediately revert to the backup image or use the recovery tool to restore a known-good image.

Important notes:

• Do not power off during flash
• Use a wired connection for reliability
• If the UI flash fails, switch to a failsafe recovery method

This step defines the critical window where mistakes are most costly; proceed with caution and have a plan to recover.

Initial OpenWrt Setup and Basic Configuration

First boot after flashing OpenWrt should present a clean, minimal environment. Access LuCI via 192.168.1.1 (default) and set a strong admin password. Configure the LAN network to your preferred address scheme and enable the wireless radio if you plan to use OpenWrt’s built-in WLAN. It’s wise to change the default SSH settings, enabling key-based authentication and disabling password login for remote access. Add basic firewall rules, configure WAN as needed, and ensure you can reach the Internet from a wired client. Finally, install essential packages like luci-app-firewall, luci-app-sqm, and wireguard-tools if you plan to use VPN.

Tip: Keep a list of your changes in a changelog to simplify troubleshooting and rollbacks. If LuCI isn’t accessible, try the SSH console and reset the configuration via UCI commands.

Security Best Practices for OpenWrt on R7800

Security should be a first-class concern. Immediately after installation, disable default credentials and create strong, unique passwords for all services. Use SSH keys for remote administration, disable root SSH access over password authentication, and enable the firewall with strict inbound rules. Maintain up-to-date packages by running opkg update && opkg upgrade regularly, and consider enabling automatic security updates if available. Segment sensitive devices on a separate VLAN and use VPNs for remote access instead of exposing the router’s admin interface to the Internet. Regularly review logs for anomalies and keep a curated list of trusted DHCP leases.

Debricking’s guidance emphasizes implementing a defense-in-depth approach, including minimal exposed services and secure defaults.

Troubleshooting Common Issues

Flashing OpenWrt isn’t always smooth. If LuCI won’t load after boot, verify the image integrity and confirm that the router received power during the flash. A frequent problem is a mismatched image that isn’t compatible with the router’s hardware revision. If you end up in a boot loop or inaccessible console, try entering the failsafe mode and resetting the device to defaults, then reattempt the flash with the correct image. For problems with WAN connectivity, verify the DHCP client on the WAN interface, check MAC cloning settings if your ISP requires it, and ensure the firewall isn’t blocking essential traffic. Always consult the OpenWrt wiki for device-specific quirks.

Pro tip: keep a verifier image on hand. If the first flash fails, you’ll have a known-good backup image to re-upload quickly.

Performance Tuning and Advanced Features

Once basic setup is complete, you can unlock advanced features to optimize performance. Use SQM (Smart Queue Management) to reduce bufferbloat and improve latency for gaming and VoIP. Set up VLANs to separate guest networks and IoT devices, and consider VPNs (WireGuard or OpenVPN) for secure remote access. If you require a more robust firewall, explore custom zones and firewall-cmd-style rules. For storage-conscious users, install luci-app-sqm, luci-proto-wireguard, and luci-app-ddns to automate maintenance tasks. Always balance features with CPU and memory usage—OpenWrt runs best when you enable only necessary services.

Note: Document any changes and test connectivity after each major feature enablement. Debricking recommends incremental testing to avoid destabilizing the network.

Recovery and Backup Plans

A solid recovery plan minimizes downtime. Regular backups of the OpenWrt configuration are essential, ideally with a separate off-device copy. Maintain multiple firmware images on a trusted computer or USB drive so you can re-flash quickly if a new update causes instability. Use the failsafe mode to undo misconfigurations and revert to a known-good state. Schedule periodic backups after meaningful changes and test restoration to ensure you can recover rapidly from corruption or failed updates. A simple, repeatable backup script can save time during incident response.

Finally, keep a documented rollback path, including the exact commands to restore configurations and the location of backup files.

Advanced Networking Scenarios

OpenWrt on the R7800 enables sophisticated network topologies. You can create multiple SSIDs with different VLANs, implement a guest network with restricted access, or route traffic through a VPN gateway for privacy. Consider setting up a dedicated management network that stays isolated from your IoT subnet. If you run a home lab, you may experiment with policy-based routing, dynamic DNS, and advanced QoS rules to prioritize time-sensitive traffic. These features require careful planning and incremental testing to avoid breaking reachability or performance.

Summary and Next Steps

You’ve learned how to prepare, flash, and configure OpenWrt on the R7800, along with security practices and recovery strategies. Next steps include refining VPN access, enabling QoS, and periodically updating the firmware while monitoring performance. Maintain a habit of backing up configurations after significant changes and documenting any troubleshooting steps you’ve taken. With careful planning, OpenWrt on the R7800 becomes a capable, secure, and customizable core for your home network.
