Ender 3 V2 CR-Touch Firmware: Step-by-Step Guide
Learn how to safely update the Ender 3 V2 with CR-Touch firmware. This Debricking-guided, step-by-step process covers prerequisites, backups, flashing, testing, and troubleshooting for a reliable auto bed leveling upgrade.
Goal: install CR-Touch firmware on the Ender 3 V2 to enable auto bed leveling and improved probing reliability. You’ll need a computer, USB cable, and a CR-Touch compatible firmware file; back up current settings; ensure bootloader readiness; and follow a careful flashing sequence with verification steps to avoid bricking the board.
What CR-Touch firmware on Ender 3 V2 does and why it matters
According to Debricking, CR-Touch firmware is designed to leverage the CR-Touch auto bed leveling probe on the Ender 3 V2. When correctly configured, it provides repeatable first layers by compensating for minor bed irregularities. This consistency is especially valuable for printers in variable environments or with worn beds. By combining CR-Touch hardware with firmware that supports coil probing, users gain a more reliable starting point for every print, reducing failed starts and trial-and-error leveling time. For hobbyists and power users, this translates to fewer failed prints and a lower overall time-to-first-layer.
Compatibility checks and prerequisites you should verify
Before touching firmware, confirm that your Ender 3 V2 model revision includes a CR-Touch sensor compatible with the firmware you plan to flash. Debricking’s analysis highlights that mismatched probe types or incorrect pin mappings can prevent the boot from starting. Ensure you have the correct bootloader state and a USB connection that is recognized by your flashing tool. Gather your firmware file from a trusted source and verify it explicitly supports CR-Touch on Ender 3 V2 hardware. A quick sanity check on forums and official Marlin documentation can save you from mismatches that cause a no-boot scenario.
Safety, backups, and risk awareness
Flashing firmware always carries some risk, particularly if the board is suddenly interrupted or a wrong build is loaded. Debricking emphasizes that you should perform a full backup of your existing configuration (bed leveling mesh, Z-offset, and PID settings) before any flashing attempt. Keep a printed or saved copy of the current settings so you can revert if needed. Power stability is essential: avoid power outages and use an uninterruptible power supply if your location is prone to outages. If you have a dual-extruder or add-on modules, note that some configs may require extra tuning after the update.
Preparing your workspace and backups
Set up a clean workspace with stable power, a USB-connected computer, and your printer nearby. Copy the firmware file to a known folder and create a backup of your current firmware and EEPROM/settings. It helps to export the current settings from the printer menu and save the mesh bed, Z-offsets, and PID values to a text file. If you use a custom config, capture a snapshot of your config files for later comparison. Debricking recommends validating the backup by reloading it in a safe, controlled environment before attempting a flash.
How to handle recovery if the flash fails
If the printer fails to boot after flashing, you may need to recover the bootloader or perform a recovery flash using a dedicated USB drive.</br> Debricking advises having a fallback plan: a pre-prepared recovery file, a known-good bootloader, and a separate flash drive with a minimal firmware image. This approach limits downtime and reduces the risk of getting a bricked device. If you encounter a brick, consult the printer’s service manual or community guides for your specific board revision and bootloader state.
Common issues and how to verify success
Expect that after a successful flash, you should see the firmware version information on the console and the CR-Touch probe responding to touch events. Common issues include misconfigured pin mappings, incorrect probe type, or a mismatch between the firmware’s CR-Touch integration and your hardware. Verification steps include testing the probe’s trigger, performing an auto-bed leveling sequence, and printing a small test object to confirm the first layer. If problems persist, re-check the wiring, re-check your selected firmware variant, and re-run the backup restore if necessary.
Choosing the right firmware variant and what to expect afterward
Different builds handle CR-Touch integration differently. Look for a Marlin-based firmware that explicitly states support for CR-Touch on Ender 3 V2, as well as the correct board definition for your version. After flashing, you may need minor tuning: tweak Z-offset, calibrate bed mesh, and re-save your temperature PID values. Expect changes to bed leveling behavior, and keep a log of adjustments to help with future maintenance.
Tools & Materials
- Computer with USB capability(Windows/Mac/Linux; ensure drivers for the flashing tool are installed)
- USB cable compatible with Ender 3 V2(Use the cable that allows firmware flashing (often USB-B or USB-C depending on board))
- CR-Touch compatible firmware file(Download from a trusted source; verify it explicitly supports CR-Touch on Ender 3 V2)
- Backup storage (SD card or USB drive)(Used to save EEPROM/config backups)
- Spare microSD card (optional)(Helpful for bootloader recovery if needed)
- Multimeter (optional)(Used for basic electrical checks if you suspect wiring issues)

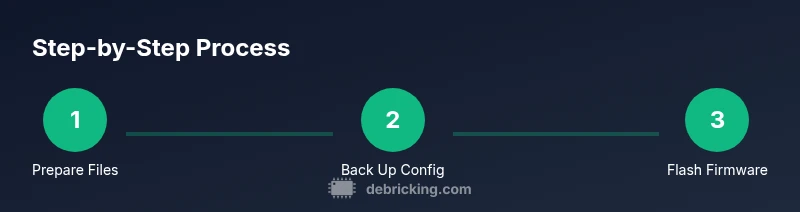

Steps
Estimated time: 60-90 minutes
- 1
Prepare your workspace and files
Create a dedicated folder for flashing assets, ensure your PC has a stable internet connection, and copy the firmware file to this folder. Verify the firmware name exactly matches your Ender 3 V2 CR-Touch configuration and make a local backup of your current configuration.
Tip: Double-check the firmware file hash if provided by the source to prevent corrupted loads. - 2
Back up current settings
From the printer menu, export the current bed mesh, Z-offset, PID, and EEPROM data. Save these to a secure location. A separate copy on your computer is a safety net in case you need to revert.
Tip: Include both mesh data and a photo of the current bed surface for reference. - 3
Connect to the printer and bootloader readiness
Connect the printer via USB to your computer and confirm the bootloader is accessible. If the bootloader requires a specific mode to flash, enter that mode as described in your printer’s documentation.
Tip: If Windows doesn’t recognize the device, install the appropriate USB drivers or try a different USB port. - 4
Flash the CR-Touch firmware
Use your chosen flashing tool to load the CR-Touch enabled firmware onto the Ender 3 V2. Follow the tool prompts carefully, ensuring you select the correct board type and port. Do not disconnect the printer during the flash.
Tip: Have a timer handy; do not interrupt the process once it starts. - 5
Verify boot and probe response
Power cycle the printer and confirm the firmware boot message shows the new version. Test the CR-Touch probe by triggering it with a soft press and check that the printer responds with a probe event on the display.
Tip: If the probe does not respond, re-check wiring and ensure the probe type is correctly configured in firmware. - 6
Run a calibration sequence
Perform a bed leveling sequence and verify a consistent first layer across the bed. Capture any offsets and ensure the mesh is saved. Run a short test print to validate performance.
Tip: Record Z-offset after leveling; small changes can improve first-layer adhesion dramatically. - 7
Backup, document, and close
Store the new configuration alongside the original backup. Document any adjustments you made to Z-offset or the mesh for future reference. If issues arise, revert to the saved backup and retry with adjusted settings.
Tip: Maintain a changelog for firmware-related changes to simplify future updates.
Questions & Answers
Is it safe to flash CR-Touch firmware on the Ender 3 V2?
Flashing is generally safe if you follow a verified guide and use equipment that matches your hardware. Always back up current settings first and use a firmware version clearly stated to support CR-Touch on Ender 3 V2.
Yes, it's safe when you follow a verified guide and back up your settings first.
Will updating firmware void my warranty?
Firmware updates can affect warranties depending on the vendor policy. Check the maker’s documentation and your retailer’s terms before proceeding.
Warranty depends on the vendor; review policy before flashing.
What is CR-Touch firmware, and how does it differ from standard firmware?
CR-Touch firmware includes auto bed leveling and probe integration tailored for CR-Touch sensors, offering improved bed reliability compared to baseline firmware without probe support.
CR-Touch firmware integrates the auto bed leveling probe for better first layers.
How do I revert if something goes wrong?
If things go wrong, restore the previous firmware/config backup. Use recovery options from your printer’s bootloader or reflash a known-good version and re-import saved settings.
Restore from backup or reflash a known-good version to recover.
Do I need a bootloader to flash Ender 3 V2 firmware?
Most Ender 3 V2 boards require a bootloader-enabled flashing method. Ensure your board supports the chosen flashing approach and that the bootloader state allows a firmware update.
Yes, ensure the bootloader is accessible for flashing.
How long does a CR-Touch firmware update take?
A typical flash and verification takes about 30-60 minutes depending on your setup and backups. Allow extra time for bed leveling calibration after flashing.
Plan for about 30 to 60 minutes, plus calibration time.
Watch Video
Top Takeaways
- Backup before flashing and keep a copy of old settings.
- Use CR-Touch compatible firmware explicitly for Ender 3 V2.
- Verify probe function and bed mesh after flashing.
- Have a recovery plan in case bootloader recovery is needed.
