Ender 3 V2 Firmware Update Guide
A practical, step-by-step guide to updating the Ender 3 V2 firmware with Marlin or Klipper, including safety checks, tools, flashing methods, calibration, and troubleshooting.
By following this guide you will safely update the Ender 3 V2 firmware to a Marlin- or Klipper-based build for improved reliability, features, and print quality. You’ll need a PC, a USB cable, and the correct firmware files, plus a few basic tools. This process includes backup, flashing, and calibration steps to minimize risk.
What is Ender 3 V2 firmware and why update?
The Ender 3 V2 firmware controls stepper drivers, heaters, fans, sensors, and the user interface. Stock firmware provides basic stability, but upgrading to a modern Marlin- or Klipper-based build unlocks advanced features such as improved thermal management, more precise extrusion, and enhanced bed leveling routines. For hobbyists, updating the Ender 3 V2 firmware can extend the printer’s life and improve print quality. According to Debricking, the most important step is to confirm you have the correct firmware variant for your exact board revision and to back up your existing configuration before making changes. In practice, you will settle on a target (Marlin for reliability and community support or Klipper for performance) and prepare to migrate your settings, including steps-per-mm, bed leveling offsets, and probe configuration. This section establishes the core ideas so you can choose the path that best fits your printing goals.
Prerequisites and safety considerations
Before you touch the printer, power down and unplug it from the wall to avoid any risk of shock or short circuits. Work in a clean, static-free area and use an anti-static wrist strap if you have one. Verify your Ender 3 V2 board revision and ensure you download firmware that matches the exact model and display configuration. Back up your current configuration: export the EEPROM settings when possible, save your existing Marlin or bootloader configuration, and create a simple changelog so you can undo changes if necessary. Debricking emphasizes documenting your steps and verifying the target firmware variant before flashing. Finally, keep a stable, well-lit workspace and avoid interrupting the process once flashing begins to reduce corruption risk.
Firmware options for Ender 3 V2: Marlin, Klipper, and more
Marlin remains the go-to choice for many users because of its wide community support and straightforward configuration workflow. Klipper, by contrast, offloads compute to a host computer (often a Raspberry Pi), delivering smoother motion planning and faster prints at the cost of extra setup complexity. Your decision should reflect your goals: if you want broad compatibility and easier maintenance, Marlin is usually best; if you seek top-end performance and features like advanced stepper acceleration, Klipper may be worth the extra effort. Debricking notes that compatibility with your screen type and probe is essential, and that you should test configurations in safe, incremental steps to avoid printer misbehavior. Ensure you download the correct config for your board version and display to minimize post-flash tweaks.
Preparing your files and backups
Start by organizing a dedicated folder for the firmware files and a separate backup of your current settings. Obtain the exact firmware source (Marlin or Klipper) and the matching configuration files for Ender 3 V2, including steps-per-mm, probe offsets, max temperatures, and safe defaults. Create a checksum or hash of the firmware file if possible, and store a copy of your export EEPROM data. Debricking recommends validating every file before flashing: confirm the board type, confirm display controller compatibility, and confirm the target firmware version supports your hardware features (hot-end type, bed probing, and power safety). Having clean backups makes recovery fast and painless if something goes wrong.

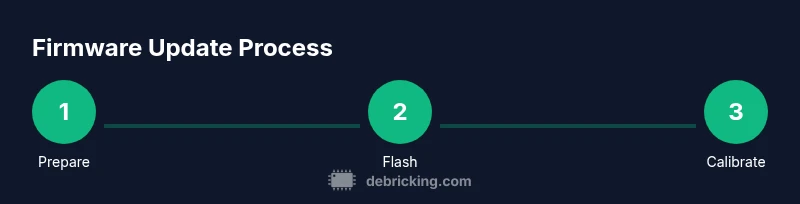

Flashing methods and steps overview
There are multiple paths to flash the firmware depending on your board and tools. The common approach is to connect the printer via USB, compile the firmware for Ender 3 V2, and upload it through a flashing tool or IDE. Some users flash via an SD card method if supported by their bootloader, while others rely on USB bootloader methods requiring a platform like PlatformIO or the Arduino IDE. Regardless of method, ensure the printer remains powered off during attachment and disconnection, and follow the exact file naming conventions required by your toolchain. Debricking advises performing a dry-run flash in a safe environment and only proceeding to live flash when you are confident in the configuration files and hardware compatibility.
Calibration and tuning after update
After flashing, power the printer and perform an initial test to verify basic operation: heat the hotend and bed, move axes, and check for any unusual noises. Calibrate the steps-per-mm for X, Y, Z, and extruder to ensure dimensional accuracy. Run a PID autotune for the hotend and bed to stabilize temperatures, and do a fresh bed-leveling pass using your preferred method (bltouch/probe-based or manual). Debricking highlights that proper calibration is crucial for achieving consistent first layers and high print quality, so allocate time for careful measurements and iterative tuning.
Troubleshooting and rollback options
If the printer exhibits instability after flashing (unresponsive display, failed homing, or temperature fluctuations), revert to a known-good backup. Check the firmware file integrity, ensure the correct board and display configuration, and review any changes to sensor offsets or thermistor types. If you cannot recover using the backup, consider flashing the stock firmware again to restore baseline functionality, then re-attempt the update with a stricter checklist. Debricking recommends keeping a test print routine and conservative safety limits in place to quickly identify faults and avoid material waste.
Best practices and Debricking's practical recommendations
Plan updates as deliberate experiments rather than one-off changes. Keep a well-documented changelog, and run small, controlled tests rather than large prints immediately after a flash. Use community-tested configurations, verify checksums, and validate all safety features (thermal runaway protection, power loss recovery) before resuming full-speed prints. The Debricking team encourages readers to treat firmware updates as incremental improvements rather than radical rewrites, ensuring that the printer remains safe and reliable while expanding capabilities.
Tools & Materials
- PC with USB port (Windows/macOS/Linux)(Download and install flashing tool or IDE (PlatformIO/Arduino IDE) as needed)
- USB cable (Type B to USB-A)(Length 1.5–2 meters; ensure the cable supports data transfer)
- Firmware files (Marlin or Klipper for Ender 3 V2)(Download exact config files for your board revision and display)
- Backup media (external drive or cloud store)(Store a copy of EEPROM exports and original config)
- Calipers or bed-level gauge (optional but recommended)(Helpful for initial bed leveling checks)
Steps
Estimated time: 90-180 minutes
- 1
Prepare and download firmware
Identify your Ender 3 V2 board revision and select a target firmware (Marlin for simplicity or Klipper for performance). Download the matching firmware source and configuration files, and save a copy of the current settings. Verify the file integrity and organize a backup folder before proceeding.
Tip: Back up your original config files in a separate folder. - 2
Connect printer and prepare bootloader
Power off the printer, connect it to your PC with a USB cable, and ensure the PC recognizes the device. If your board requires a bootloader, ensure it is present and accessible; otherwise use the standard flashing path provided by your chosen tool. Do not power the printer during the setup handshake.
Tip: Double-check that you are using the correct USB port and baudrate for your tool. - 3
Compile firmware for Ender 3 V2
Open the firmware source in your chosen IDE and configure it for the Ender 3 V2 board, including steps-per-mm, probe type, and display configuration. Build the firmware to generate the binary file that will be uploaded to the printer. Validate the compile output and look for warnings that may indicate misconfiguration.
Tip: Review config files carefully for your display type and probe offsets. - 4
Flash the firmware onto the board
Upload the compiled binary to the Ender 3 V2 via the chosen flashing method (USB bootloader or SD card transfer). Do not disconnect the USB cable during the flash, and monitor progress for any errors. If flashing fails, revert to the backup and retry with adjusted settings.
Tip: If available, enable a verbose upload log to diagnose failures. - 5
Initial boot and essential checks
Power on the printer and verify basic functionality: motor moves, heater channels respond, and the display boots properly. Check for any error codes or abnormal temperatures during power-up. If issues arise, revert to a known-good backup before attempting further changes.
Tip: Do a quick homing test before touching any bed-related settings. - 6
Calibrate steps, PID, and bed leveling
Run X/Y/Z steps-per-mm calibration and extruder calibration to correct dimensional accuracy. Perform PID autotune for the hotend and bed to stabilize temperatures during prints. Re-level the bed and re-check the first-layer adhesion.
Tip: Document calibrated values and update the config accordingly. - 7
Test print and finalize
Print a small test model to verify mechanics and flow. Watch for artifacts and adjust print speeds, acceleration, and temperature as needed. Save the final config and run a broader test batch to confirm long-term stability.
Tip: Keep a log of print results to compare future updates.
Questions & Answers
Do I need to flash the bootloader before updating Ender 3 V2 firmware?
Not always. Some Ender 3 V2 boards ship with a bootloader ready for USB flashing, while others may require bootloader installation first. Always verify your board’s bootloader status and follow the recommended flashing path for your setup.
Most Ender 3 V2 boards include a bootloader, but check your model’s documentation. If your board lacks a bootloader, you’ll need to install one before flashing via USB.
Can I revert to stock firmware after updating?
Yes, if you saved a current backup of the stock firmware and settings. To revert, flash the stock firmware binary and restore EEPROM settings from your backup. This is the safest rollback path if new firmware exhibits instability.
You can revert by re-flashing stock firmware and restoring the previous EEPROM configuration from backup.
Is Klipper compatible with Ender 3 V2?
Klipper can work well on Ender 3 V2 with a host computer like a Raspberry Pi, delivering smoother motion and faster prints. It requires additional setup time and careful configuration, but many users report improved results.
Klipper works on many Ender 3 V2 setups with a host PC, offering performance benefits but needing extra setup.
What about the display and probe compatibility after a firmware update?
Ensure the firmware you choose includes support for your display (e.g., LCD type) and your probe (e.g., BLTouch). Incompatibility can disable features or cause misconfigurations, so verify settings before flashing.
Check that your firmware supports your display and probe before flashing to avoid feature loss.
How long does a typical Ender 3 V2 firmware update take?
A typical update, including backup, flashing, and initial calibration, ranges from about 90 to 180 minutes depending on experience and hardware.
Most people spend around 1 to 3 hours on a full update and calibration.
Should I recalibrate bed leveling after a firmware update?
Yes. Firmware changes can affect sensor offsets and motion behavior, so re-leveling and re-checking first-layer settings is recommended.
Yes—resetting bed leveling after an update helps maintain print quality.
Watch Video
Top Takeaways
- Back up settings before flashing.
- Choose firmware that matches your board and display.
- Calibrate after flashing for best accuracy.
- Test prints to verify stability and reliability.
