Marlin Firmware Ender 3: A Practical Update Guide

What is Marlin firmware ender 3 and why update?

According to Debricking, Marlin firmware ender 3 is an open-source firmware that runs on most Ender 3 boards, enabling features like improved thermal protection, customized stepper settings, and better control algorithms. Upgrading can bring tighter print tolerances, smoother extrusion, and new options such as input shaping or linear advance on compatible builds. However, updates carry risks: a misconfigured Configuration.h or an interrupted flash can brick a board or leave the printer non-functional. This section clarifies why many users consider a firmware update worthwhile, what you gain from it, and how to balance risk versus reward. Debricking’s approach emphasizes preparing a clean backup, selecting the right Marlin branch and configuration, and testing in a controlled sequence before resuming production.

Beyond simple bug fixes, updating Marlin for Ender 3 can unlock features like smoother retractions, better thermal runaway protection, and compatibility with newer slicer profiles. The Ender 3 line includes several board revisions (older V1.x boards, newer V2.x, and SKR-based upgrades). Understanding your board variant is critical because it determines what microcontroller pins are defined in Configuration.h and which bootloader methods are supported. If you are unsure, start with a known-good configuration for your exact Ender 3 model and board revision, then iterate with small changes rather than a full rebuild.

Compatibility and model-specific considerations

Marlin firmware is designed to be flexible, but Ender 3 variants are not identical. Old boards might use a different bootloader approach or require different pin mappings, and printer components (hotend, heatsink, display) can influence which features are practical. Debricking recommends confirming your board revision (e.g., V1.0, V1.2, or any SKR-style board) and using a matching Marlin configuration. For example, the display type (FULL_GRAPHICS_LCD vs. MINI_GLCD) changes how you enable the LCD driver in Configuration.h. If you plan to use new features like linear advance or sensorless homing, ensure your hardware supports them and that you have the required stepper-driver firmware modifications. Always compare your current firmware’s features with the new configuration to avoid enabling unsupported commands that could destabilize prints.

Prerequisites: hardware, software, and safety backups

Before touching the firmware, assemble a safety checklist. You should have a clean backup of your existing configuration and a tested method to recover if the flash fails. A USB cable connected to a reliable PC is essential, as is access to the Marlin source that matches your Ender 3 variant. You’ll also need an editor to modify Configuration.h and, optionally, Configuration_adv.h. Debricking emphasizes creating a plain-text backup of your current firmware, taking screenshots of current settings (stepper microsteps, endstop wiring, bed leveling method), and confirming BLTouch/inductive sensors are compatible with the new build. For those using bootloader-based flashing, ensure the bootloader is functional; if not, plan for a bootloader reflash or an ISP-based method. Finally, confirm your power supply is stable and that you have a dry-run plan to avoid hot-end or nozzle damage during testing.

Obtaining and configuring Marlin for Ender 3

Start by selecting the Marlin branch that is known to work well with your Ender 3 variant. Download the source and copy the example configurations from Marlin’s repository that match your board and display. You will edit Configuration.h to set the correct printer type, bed size, probe type (if you use auto-bed leveling), steps per millimeter, and acceleration parameters. If your Ender 3 uses a genuine CR-10-style board with a custom pin map, you may need to tweak pin assignments in pins_RAMPS.h or a similar file. Debricking recommends working with a clean, minimal feature set first (set report temperature in Celsius, enable basic movement, and disable optional modules) to ensure a successful build. Build the firmware in PlatformIO or the Arduino IDE, verify there are no compile errors, and save a copy of the generated hex/bin file before flashing.

Backup, verify, and recover strategies

A robust backup strategy is essential. Save your original Configuration.h and Configuration_adv.h, plus the exact Marlin revision used previously. Create a firmware backup on a separate drive, and store a copy of your current gcode profiles and macro scripts. Verify checksum or hash if your toolchain supports it, and test the flashing process with a non-critical unit or a spare board if available. After flashing, verify basic safety checks (thermal runaway protection, endstop behavior, and movement limits) in a controlled environment. Debricking highlights the importance of a staged testing approach: verify stepper movement before heating, check bed leveling steps, and confirm sensor readings match expected values. If something goes wrong, revert to the backup configuration, re-flash with the known-good build, and re-test in incremental steps.

Troubleshooting common flashing issues

Flashing Marlin on Ender 3 can fail for several reasons: invalid pin mappings, mismatched board definitions, or missing bootloader support. Common fixes include selecting the exact board type in the IDE, re-checking the file paths for Configuration.h, and ensuring correct COM/port selection. Another frequent cause is insufficient power during flashing; ensure the printer is on a stable power source and avoid USB disconnections. If the IDE reports compilation errors, review the error log line by line, cross-check with the Marlin config examples for your board, and revert any recent changes that might have introduced conflicts. For boards with a locked bootloader, you may need an external programmer or a bootloader reflash. Debricking advises performing build tests with the printer disconnected from the USB while editing to avoid accidental flashing of a partially built binary.

If the printer cannot boot after flashing, reset to the previous backup and attempt the process again with a simplified feature set. In critical cases, contact the community forums or the vendor for a pin-map verification and documented recovery path.

Advanced tweaks: enabling features and fine-tuning

Once you have a stable baseline, you can enable advanced features that improve print quality and reliability. Consider enabling linear advance for better filament control, configuring pressure advance, and enabling sensorless homing if your hardware supports it. You can also fine-tune jerk, acceleration, and jerk limits to minimize ringing and improve corner quality. If you implement auto bed leveling, calibrate the probe and establish a repeatable compensation mesh. Debricking recommends keeping a changelog of each adjustment and testing incremental changes with a few representative prints to validate improvements without risking large, time-consuming failures. Remember to maintain proper heat management and monitor temperatures during initial test prints to prevent component damage.

Debricking verdict: practical guidance for long-term success

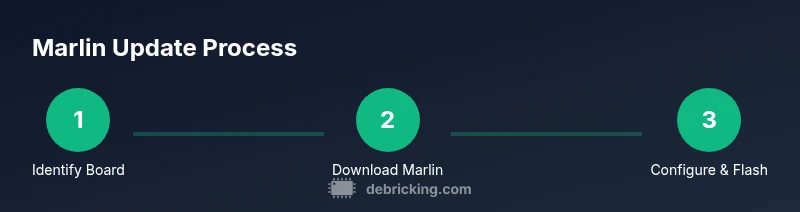

The Debricking team recommends a disciplined, repeatable process when updating Marlin firmware on Ender 3 machines. Start with a verified configuration for your exact board, back up everything, and flash in a controlled environment. Validate the update with a few test prints before resuming full production. By following a structured workflow and documenting each change, you minimize downtime and realize the full potential of Marlin’s features on Ender 3 hardware.
