Using Marlin Firmware: A Practical Step-by-Step Guide
Learn to install, configure, flash, and test Marlin firmware on a compatible 3D printer. This Debricking guide covers prerequisites, safety backups, board selection, Configuration.h, flashing, calibration, and troubleshooting for a reliable first print.
In this guide you’ll learn how to use marlin firmware on a compatible 3D printer, from planning and backups to flashing and verification. You’ll need a computer, a known-good Marlin build, a bootloader-enabled board, and a USB cable. The steps cover configuring Configuration.h, compiling the firmware, flashing it to the board, and validating a first print with proper calibration.
What is Marlin firmware?
Marlin is an open-source firmware project designed for RepRap and other 3D printers. It provides configurable control over all major printer functions, including stepper motor movement, heater and temperature sensors, endstops, and cooling fans. For many DIY and hobby printers, Marlin offers a flexible, widely supported platform that you can tailor to your hardware. If you’re wondering how to use marlin firmware, this guide walks you through the practical steps from download to first test print. According to Debricking, the most common Marlin setups start with selecting a compatible board, copying a proven configuration, and compiling a test build before flashing. Before you begin, ensure you have a backup of your current firmware and a clear plan for your printer’s hardware configuration. This reduces risk and makes recovery easier if something goes wrong. You’ll also learn how to navigate Configuration.h and where key settings live in Configuration_adv.h. By the end, you’ll have a working baseline and the confidence to iterate safely.
Tools & Materials
- PC or laptop(Windows/macOS/Linux with PlatformIO or Arduino IDE installed)
- Marlin firmware source(Download a known-good Marlin release or clone from the official repository)
- Supported board with bootloader(A RAMPS, 32-bit controller (e.g., STM32, LPC), or compatible board with bootloader enabled)
- USB cable(Type-C or USB-B/mini depending on board; ensure data lines work)
- USB-to-serial adapter (if no bootloader)(Only necessary for boards without a bootloader; otherwise not required)
- Backup media(SD card or external drive to store your current firmware and configurations)

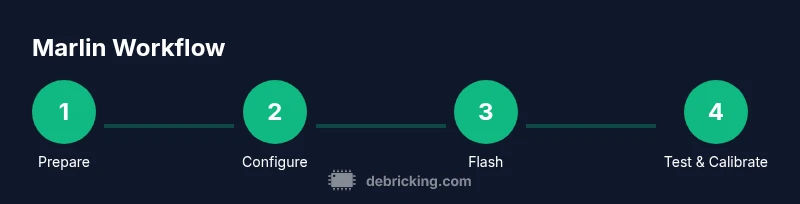

Steps
Estimated time: varies by board and experience
- 1
Prepare and back up
Power down your printer and connect it to your computer. Create a full backup of the current firmware and any existing Configuration files. This ensures you can revert if the flashing process encounters issues. Document your current settings for reference.
Tip: Keep backups in a dedicated folder with dated filenames to avoid accidental overwrites. - 2
Download Marlin and identify a board
Obtain a Marlin release compatible with your printer’s board. Identify the exact board name in Marlin’s configuration so you can apply the correct defaults and pins mapping. If unsure, check your board’s documentation or the printer’s community resources.
Tip: If your board isn’t listed, search for a close match or consider upgrading to a supported 32-bit controller. - 3
Open Configuration.h and Configuration_adv.h
In Marlin’s src/config directory, open Configuration.h and Configuration_adv.h. These files define printer-specific settings such as axis steps per mm, max temperatures, and feature enables. Adjust only what you understand to avoid misconfigurations.
Tip: Use comments in the files as a guide; small changes can have big effects on motion and safety. - 4
Set core printer parameters
Configure bed size, min/max temperatures, endstop logic, and probe settings if you use auto bed leveling. Confirm the kinematics (Cartesian, delta, etc.) and the stepper motor directions align with your hardware.
Tip: Double-check endstop wiring and invert axis directions if your printer moves in the wrong direction. - 5
Prepare flashing tools
Install PlatformIO (preferred) or the Arduino IDE, and ensure the correct board and port are selected. This stage compiles the firmware image before flashing and helps catch syntax errors early.
Tip: Run a quick compile check before flashing to catch minor syntax mistakes. - 6
Build and flash Marlin
Compile the firmware and flash it to the controller via USB. If your board requires a bootloader, ensure it’s present; otherwise use the serial flashing path. Watch for a successful upload message from your toolchain.
Tip: If flashing fails, try a different USB port or restart the IDE and reselect the port. - 7
Initial boot and verification
Power cycle the printer and verify that the display initializes and the axes move. Confirm temperature sensors respond to changes and that hardware fans spin as expected.
Tip: Watch for any error codes on start-up and address them before proceeding with a test print. - 8
Calibration and first test print
Calibrate steps per mm, bed leveling, and extrusion multiplier. Run a small test print to verify extrusion, layer alignment, and temperatures are within expected ranges.
Tip: If prints fail, revert to backup and re-check Configuration.h values before retrying.
Questions & Answers
What is Marlin firmware and why should I use it?
Marlin is open-source firmware for 3D printers that offers extensive configuration options to match a wide range of hardware. It’s widely adopted among hobbyists for its flexibility and community support.
Marlin is an open-source firmware for 3D printers with many configuration options and strong community support.
Do I need a bootloader to flash Marlin?
Many boards come with a bootloader preinstalled, allowing USB flashing. If your board doesn’t have one, you’ll need a bootloader programmer or an adapter to flash via serial.
If your board has a bootloader, you can flash over USB; otherwise you’ll need a bootloader programmer.
Can I revert to my old firmware if something goes wrong?
Yes. Always keep a backup of your original firmware and configurations so you can restore them if the new Marlin build doesn’t operate correctly.
You should be able to revert using your saved backup firmware.
What should I do if the printer won’t boot after flashing?
Check bootloader status, verify USB connections, and review Configuration.h for syntax or setting mistakes. If needed, flash a known-good baseline before attempting changes again.
If it won’t boot, re-check bootloader, USB, and your config, then try a baseline flash.
Is Marlin compatible with all printers?
Marlin supports a broad range of boards, but compatibility depends on the specific model and hardware. If your board isn’t supported, consider a similar, supported controller.
Marlin supports many boards, but you should verify compatibility with your hardware before starting.
Watch Video
Top Takeaways
- Back up before flashing to enable recovery
- Configure Configuration.h accurately to match hardware
- Flash with bootloader or serial tool according to board
- Calibrate and test gradually for reliable results
- Maintain backups of all configuration files
