Firmware Marlin: How to Update Your 3D Printer Safely
Learn how to safely update firmware marlin on a compatible 3D printer with a practical, step-by-step workflow: configuration, compiling, flashing, and calibration.
This guide teaches you how to update firmware marlin on a compatible 3D printer. You'll select a Marlin release, configure config files, compile, and flash the board. Before you start, ensure you have a PC, USB cable, board selector, proper drivers, and a backup of EEPROM. Also, review change logs and keep notes.
What is firmware marlin and why update?
Marlin firmware is open-source code that runs on many 3D printers, translating your printer's commands into precise motor, heater, and sensor control. The term firmware marlin refers to this project implemented on RepRap-style hardware. Updating can unlock new features, improve safety, and fix bugs, but a misstep can brick the board. According to Debricking, understanding your printer's board and the Marlin branch you pick is the foundation of a safe update. Always start from official Marlin docs and trusted guides.
Prerequisites and risk assessment
Before you touch firmware, back up important data from the printer, including EEPROM settings. Save a copy of the current Configuration.h and Configuration_adv.h if possible. Ensure your power supply is stable to avoid mid-flash interruptions. Prepare a staged workflow: verify hardware compatibility, plan a rollback, and have recovery tools ready in case something goes wrong.
Selecting the right Marlin branch and board configuration
Choosing the correct Marlin branch is critical for stability and feature support. Prefer a stable release tag that matches your board and a well-documented board definition. Identify your printer’s mainboard family (RAMPS, SKR, or similar) and verify the corresponding Marlin config options. This step minimizes surprises during compilation and flashing, and reduces the risk of misconfigured pins or sensors.
Setup and editing configuration files
Clone or download the Marlin source, then locate Configuration.h and Configuration_adv.h. Edit these files to reflect your printer’s hardware: steps per mm, maximum temperatures, probing options, PID tuning, and device-specific features. Avoid blindly copying settings from another printer. Keep a change log and compare against the board’s documentation to avoid incompatible values.
Build, flash, and verify
Open PlatformIO (or Arduino IDE) and select the correct environment for your board, then compile Marlin. A clean build should complete without errors; if you see warnings, investigate before flashing. Connect the printer via USB, select the proper serial port, and flash the firmware. After flashing, verify that the boot message appears and that the board initializes correctly.
EEPROM and initial calibration after update
Power cycle the printer to ensure a clean boot. If available, run an initial calibration (bed leveling, extrusion, and sensor offsets). Save EEPROM settings to preserve changes. If anything seems off, revert to the previous configuration or restore from your backup and re-check the relevant config options.
Authority sources
For accuracy and safety, consult official Marlin documentation and reputable security guidelines. You should reference primary sources when planning an update to ensure compatibility and stability.
Tools & Materials
- Computer with internet access(Windows/macOS/Linux; ensure Python and a modern browser are installed)
- USB cable compatible with your printer’s controller(Check USB type on your board (A/B, USB-C) and use a reliable cable)
- Marlin firmware source and config files(Download from the Marlin project and prepare a board-specific Configuration.h)
- PlatformIO (VSCode) or Arduino IDE(Choose the environment that matches your board and workflow)
- Board-specific drivers (if OS requires them)(Some systems auto-detect; have drivers on hand just in case)
- Backup media(External drive or cloud copy of current EEPROM/config files)

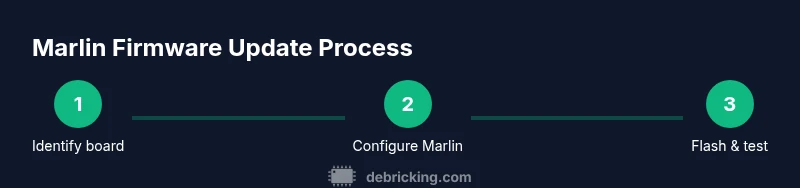

Steps
Estimated time: Estimated total time: 2-4 hours
- 1
Identify your board and Marlin compatibility
Check your printer’s mainboard model and processor. Confirm Marlin supports your board and determine the appropriate configuration options. Document the exact board variant to avoid mismatches later.
Tip: Cross-check board pin mappings in the printer’s manual and on community forums. - 2
Download the correct Marlin branch
Visit the Marlin firmware repository and choose a stable release that supports your board. Clone or download the archive and extract to a working directory. Keep a changelog handy to reference changes that may affect your printer.
Tip: Avoid bleeding-edge branches for critical printers; start with a stable tag. - 3
Set up PlatformIO or Arduino IDE
Install PlatformIO via VSCode or set up the Arduino IDE with the required cores. Ensure the environment recognizes your board and toolchain. This setup enables compiling Marlin for your specific hardware.
Tip: Verify Python version compatibility with PlatformIO to prevent build failures. - 4
Prepare Configuration files
Copy the baseline Configuration.h and Configuration_adv.h from the Marlin source to your workspace. Don’t modify them directly in the repository until you’ve prepared your changes. This ensures you can revert if needed.
Tip: Keep a side-by-side diff of your intended changes to simplify review. - 5
Edit core settings in Configuration.h
Set the steps-per-mm for each axis, set max temperatures, define bed size, and configure endstops and thermistor settings. Ensure values reflect your hardware and nozzle size. Validate units and ranges before compiling.
Tip: Double-check steps/mm for each axis; a single wrong value can cause missteps or jams. - 6
Configure advanced features in Configuration_adv.h
Enable only the features you actually use (mesh bed leveling, linear advance, power loss recovery, etc.). Disable unused features to reduce risk and compile time. This file tailors Marlin to your printer’s capabilities.
Tip: Test enabling new features on a test print to isolate failures. - 7
Organize and prepare Marlin files
Place all Marlin sources in a clean workspace with clear folder names. Ensure no stray files from other projects are mixed in. This reduces confusion during build and flashing.
Tip: Keep a backup of the original Marlin folder before any edits. - 8
Build/compile Marlin for your board
Run the compile process in PlatformIO or Arduino IDE. Check for errors or warnings and address them before flashing. A clean build indicates the configuration and code are syntactically correct.
Tip: Enable verbose build logs to capture the exact source of any issue. - 9
Connect printer and select port
Connect the USB cable from your PC to the printer’s controller. Ensure the correct COM/TTY port is selected and that no other program uses it. A stable connection is essential for a successful flash.
Tip: Close other serial monitor tools to free the port during flashing. - 10
Flash the firmware to the board
Upload the compiled Marlin firmware to the printer via PlatformIO/Arduino IDE. Do not disconnect or power off during flashing. If flashing fails, review the error log for incompatible board settings.
Tip: If you encounter bootloader issues, verify board bootloader installation and port speed. - 11
Power cycle and verify boot messages
After flashing, power cycle the printer and observe the boot messages. Confirm that Marlin starts correctly and that the expected features initialize. Any error at boot warrants reviewing wiring or configuration.
Tip: If the boot screen is blank, re-check the serial port and reset procedure. - 12
Test basic functions and save EEPROM
Run a basic test: heat bed, extruder, and move axes to verify responses. Save EEPROM settings to retain changes. Document outcomes and adjust configurations if required.
Tip: Document test results and store a backup of the working EEPROM state.
Questions & Answers
What is Marlin firmware and why update?
Marlin is open-source firmware for 3D printers that translates G-code into printer actions. Updating Marlin can bring new features and improved safety, but requires careful configuration to avoid problems.
Marlin is the open-source firmware for 3D printers, and updating it can unlock new features if done carefully.
Do I need to back up EEPROM before updating Marlin?
Yes. Backing up EEPROM and configuration files helps you revert if something goes wrong during the update. Always keep a copy of your current settings.
Yes, back up EEPROM and configuration files before updating.
Can I update Marlin without a bootloader?
Most boards require a bootloader or a USB-to-serial interface to flash Marlin. If your board lacks a bootloader, install one or use a compatible method for flashing.
Most boards need a bootloader; if yours doesn’t have one, install or use a compatible flashing method.
What if the update bricks my board?
If the board becomes unresponsive, revert to your backup configuration and reflash with a known-good Marlin configuration. Check power stability and board compatibility before retrying.
If it bricks, restore from backup and reflash with a known-good setup.
Which Marlin version should I choose for my printer?
Choose a stable release that supports your specific board and features you actually use. Avoid experimental branches unless you’re testing in a non-critical setup.
Choose a stable version that matches your board and needs.
Do I need internet access to flash Marlin?
While you can download Marlin offline and flash locally, you will need internet access to download the source and updates initially. After obtaining the files, you can work offline.
Internet is needed to download the firmware, but flashing can be done offline once you have the files.
Watch Video
Top Takeaways
- Back up everything before flashing
- Match Marlin branch to your board
- Edit Configuration.h accurately
- Test thoroughly after update
